• quarry sand grading sieve 2ZD3061 vibration sieve

quarry sand grading sieve 2ZD3061 vibration sieve

1.stable vibration 2.reliable operation 3.long service life Please contact:hexiaojing523@126.com

Product Details

Quick Details

Description

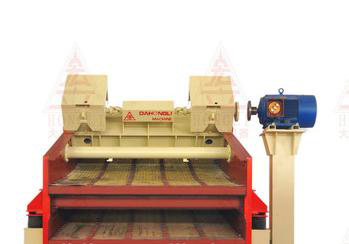

The product is linear motion Equal Thickness Grading Sieve. This product is characterized by reasonable structure, powerful excitation force, lower vibration noise, high efficiency in sieving and handling capability, easy to maintain and long service life. It’s widely used in quarries, mines, building materials, electric power, coal and chemical sectors.
Technical Parameters:
Model
Sitting size
Number
of layers
Motor
Power
(KW)
Weight
(KG)
Capacity
(T/H)
Max. upper
feed size
(mm)
Max. upper
sieve hole
size(mm)
Width
(M)
Length
(M)
1ZD3061
3
6.1
1
45
14000
3200
200
150
2ZD3061
3
6.1
2
75
20000
3200
200
150
1ZD3661
3.6
6.1
1
75
17000
3700
200
150
2ZD3661
3.6
6.1
2
90
24000
3700
200
150
1ZD4273
4.2
7.3
1
75
21000
4400
200
150
2ZD4273
4.2
7.3
2
110
35000
4400
200
150


Company Profile

Chengdu Dahongli Machinery Co., Ltd. is one of the most famous enterprises in China that specializes in the manufacture of sand and stone processing equipment and ore crushing & production line. With over twenty years of development, the company now is equipped with advanced production line and R & D center, as well as a professional team for research, design, manufacture, sales, installation, maintenance of products and related training.With solid technical force, advanced production facility, excellent testing system, superior product performance, fast, quality, low-cost 24-hour after service, and a customer-oriented philosophy, the products of the company are sold around the country and in the international market, enjoying accolades from our customers.
Dahongli Machine looks forward to joining hands with you to create a brilliant future!
