• machine center

machine center

1. Linear guide way 2. X,Y,Z axis travel:500mm,400mm,450mm 3.Tool magazine capacity:16 4.Spindle hole taper: BT40 Please contact:zhuxiaochen124@126.com

Product Details

Quick Details

Description

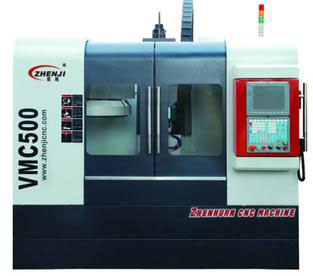

VMC500
Technical Parameter
Work table size
620X400mm
Max. Loading capacity of wrok table
250kg
X-axis travel
500mm
Y-axis travel
400mm
Z-axis travel
450mm
Distance from spindle nose to work table
90-540mm
Guide way type
Linear guide way
Rapid traverse rate of X, Y, Z axes
20000mm/min
Spindle speed
50-8000r/min
Taper hole of Spindle
BT40
Spindle drive motor
5.5KW servo motor
Tool storage capacity
16 with Carousel style / 16 with disc style (Option)
Max. tool weight
7kg
Tools changing time
≤8 with carousel type magazine (≤3 with disc-style magazine)(option)
T-slot of work table
(3 slots) 18X110
X, Y, Z axis setting accuracy
0.020/0.016/0.016
X, Y, Z axis resetting accuracy
0.008/0.008/0.008
Overall dimension (L X W X H)
2300X2100X2400mm
Mass of Machine (about)
2700kg


Company Profile


It is a modern high-tech enterprise with not only scientific R&D (Research and Development), but also production-manufacturing, distribution and after-sales service. The company has been awarded the honor of "Zhejiang SME," "High-tech Industry," "Top Ten Industry in Yuhuan," "Top 50 CNC Machine Tool Manufacture in China" and "Taizhou Great Brand."
Z-MaT makes efforts to achieve leaps in the development plans by cooperating with the famous tertiary institutions and universities. The company collaborates with a high performance team of many honest-spirited senior professionals to engage in the technical developments of engineering. Focuses on product development, key technology research, manufacturing, product assembly, debugging and testing. Advanced production management concepts create a new industrial base within modern R&D and manufacturing.
In pursuit of quality and reputation, Z-MaT has introduced precision gantry grinders, machining centers, roundness measuring equipments, laser interferometers, dynamic balancing instruments and other advanced manufacturing equipment and measuring instruments. These equipments help Z-MaT continue to pursue excellence, create first-class brands, and provide customers with high-quality "Z-MaT" machines.
After many years of innovation and R&D, Z-MaT currently has more than 40 series of CNC machine tools, such as: CJK, CK, CXK, CNC, ZXK, ZYK, VMC, etc. Meanwhile, various special machines can also be customized or designed according to the customers' needs. Its sales network is all over the world, and the company enjoys the right to import and export trade to serve the world. Z-MaT people are always insistent on the marketing policy of "Being honest and sincere".
In the future, Z-MaT will continue to focus its concentration on technological innovations and the development of new products. The best service and technology will be provided for both international and domestic customers. We sincerely expect to cooperate with you!
