• high capacity V type LEVER BLOCK/LEVER HOIST/ratchet chain lever hoist

high capacity V type LEVER BLOCK/LEVER HOIST/ratchet chain lever hoist

1.small cubage
2.light weight
3.beautiful appearence
4.small manual force
5.safety and reliability

Product Details

Quick Details

Description

PRODUCT INFORMATION

high capacity V type LEVER BLOCK/LEVER HOIST/ratchet chain lever hoist

V TYPE Manual Lever Block has such distinct merits as small cubage, light weight, beautiful appearance, small manual force, safety and reliability, and long operational life span. It is especially used in occasion without power source such as shipbuilding, post office, mines, electric power, and transportation units in heavy goods suspending, equipment fixing, mechanism traction, and aerial exercise. It can rapidly unhitch brake equipment under unloaded condition, so that the flying hook can remove fleetly.

Feature of :high capacity V type LEVER BLOCK/LEVER HOIST/ratchet chain lever hoist

1,Smaller, compact body and lightweight design for low headroom applicationsand use in confined areas

2. Load plates are heat treated for durability, extending the life of the hoist inmost industrial environments

3.Weston style dual pawl brake system increases safety by splitting the load to opposite sides of the ratchet gear for greater load security

4. Industrial-rated alloy steel hooks rotate 360 degrees for easy rigging

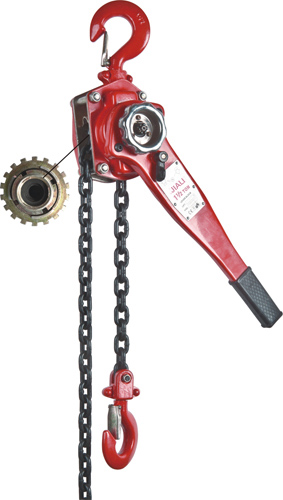

Picture of high capacity V type LEVER BLOCK/LEVER HOIST/ratchet chain lever hoist



Specification of :high capacity V type LEVER BLOCK/LEVER HOIST/ratchet chain lever hoist

Model

JIALI- 0.75t

JIALI- 1.5T

JIALI-3.0T

JIALI-6.0T

JIALI- 9.0T

Capacity(t)

0.75

1.5

3

6

9

Standard lift(m)

1.5

1.5

1.5

1.5

1.5

Running test load(t)

1.125

2.25

4.5

9

13.5

No.of falls of load chain

1

1

1

1

1

Load chain diameter(mm)

6.3

7.1

9

9

9

Dimension(mm)      A

155

170

198

198

198

                                B

88

110

120

120

120

                                C

135

162

211

254

319

Net weight(kg)

6.6

11

17

27.5

47

Packing(L*W*H)(cm)

34*12*17

45*16*18

47*20*21

47*20*21

56*40*21



Company information

As a major exporter of high capacity V type LEVER BLOCK/LEVER HOIST/ratchet chain lever hoist industrial electric, manual chain/lever hoist and related accessory in China,Dalian Jiali Hoisting Rigging Co., Ltd has grown and expanded into an internationally recognized brand, serving customers both domestic and overseas due to our credibility and diligence.

Company Profile

Dalian Jiali Hoisting Rigging Co., Ltd. is located in the beautiful coastal city - Dalian. The company is always keeping the "quality of survival, integrity and development" business philosophy.
We are dedicated to supply the best products and service to our customers, our products includes high quality wire rope hoist, electric chain hoist, chain block, lever block, high-strength sling, movable jib crane, machining center and anchor chain, etc.
