  • cnc slant lathe

cnc slant lathe

1. 8-position servo turret 2. linear guide way 3. hydraulic chuck 4. hydraulic tailstock Please contact:zhuxiaochen124@126.com

Product Details

Quick Details

Description

1,35 degree slanting bed is more connivent for workers to discharge scrap iron. The integral type lathe bed make the machine tool harder, so that the lathe is more stable.

2. X, Z axes contains with high-precise rolling screws mandrel, it make a better dynamics and higher precisions.

3. High degree of accurate angular contact ball bearings are used as bearing of the lathe. This gives a optimized combination of high-precision, high bearing capacity, good running speed and it is more durable.

4. Eight-station hydraulic turret, hydraulic chuck, hydraulic tailstock increase the versatility and automation of the lathe.

5. The design of the guarded guideway is more water-resistent and scrap-iron-resistent.

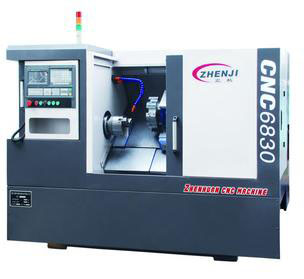

CNC6830
Technical Parameter
Max. swing diam.
300mm
Max.machining diam.
250mm
Standard machining diameter
180mm
Max.workpiece length
300mm
X-axis max. stroke
150mm
Z-axis max. stroke
300mm
Spindle diam. of through-hole
φ48mm / 62mm(option)
Draw pipe diam. of through-hole
φ40mm / 52mm(option)
Rapid travel speed of X, Z axis
12000mm/min,15000mm/min / 15000mm/min,20000mm/min(option)
Spindle travel speed range
3000r/min /5000r/min (option)
Chuck
6" hydraulic chuck/8" hydraulic chuck(option)
Type of turret
Servo turret 8 station
Main motor power
4.0KW/5.5KW(option)
Tailstock stroke
80mm
Tailstock sleeve taper
MT4 hydraulic tailstock
Overall dimensions (LXWXH)
2130X1450X1600mm
weight (about)
2200kg


Company Profile


It is a modern high-tech enterprise with not only scientific R&D (Research and Development), but also production-manufacturing, distribution and after-sales service. The company has been awarded the honor of "Zhejiang SME," "High-tech Industry," "Top Ten Industry in Yuhuan," "Top 50 CNC Machine Tool Manufacture in China" and "Taizhou Great Brand."
Z-MaT makes efforts to achieve leaps in the development plans by cooperating with the famous tertiary institutions and universities. The company collaborates with a high performance team of many honest-spirited senior professionals to engage in the technical developments of engineering. Focuses on product development, key technology research, manufacturing, product assembly, debugging and testing. Advanced production management concepts create a new industrial base within modern R&D and manufacturing.
In pursuit of quality and reputation, Z-MaT has introduced precision gantry grinders, machining centers, roundness measuring equipments, laser interferometers, dynamic balancing instruments and other advanced manufacturing equipment and measuring instruments. These equipments help Z-MaT continue to pursue excellence, create first-class brands, and provide customers with high-quality "Z-MaT" machines.
After many years of innovation and R&D, Z-MaT currently has more than 40 series of CNC machine tools, such as: CJK, CK, CXK, CNC, ZXK, ZYK, VMC, etc. Meanwhile, various special machines can also be customized or designed according to the customers' needs. Its sales network is all over the world, and the company enjoys the right to import and export trade to serve the world. Z-MaT people are always insistent on the marketing policy of "Being honest and sincere".
In the future, Z-MaT will continue to focus its concentration on technological innovations and the development of new products. The best service and technology will be provided for both international and domestic customers. We sincerely expect to cooperate with you!
