  • c5125 single column verticle lathe

c5125 single column verticle lathe

CE & ISO 9001:2008
digital DRO (or cnc)
turning diameter 2.5m
workpiece height from 1.25m
lost foam foundry

Product Details

Quick Details

Description

Parameter

Parameter C5116 C5125
Max. turning diameter of tool post 1600 2500
Working table diameter 1400 2200
Max. height of work piece 1000 1250
Max. weight of work-piece 5 20
Work-table range of rotation speed 5-160 2-62
Work-table step of rotation speed 16 16
Feed amount range of tool post 0.8-86 0.8-86
Feed amount step of tool post 12 12
Max. cutting force of tool post 2500 2500
Max. torque 2500 3200
Horizontal travel of tool post 915 1310
Vertical travel of tool post 800 800
Crossbeam travel 850 950
Swing angle of tool post ±30° ±30°
Crossbeam lifting speed 0.66 0.44
Tool bar section dimensions (W*H) 30*40 30*40
Power of main motor 30 37
Dimensions of machine (L*W*H)  2662*2800*3550 3380*3360*4000
Weight of machine(approx.) 12.1 21.8



Usage range

*Turning the internal and external cylindrical surface and plane

*Turning internal and external conical surface

* Grooving

*Head face

*Severance



Advantage

* Working table adopts hydrostatic guide way.

*The spindle is to use model NN30(Grade D)bearing and able to turn precisely.

*Gear case is to use 40Cr gear wheel of gear grinding,which has high precision

and little noise

*Plastic coated guide ways are wearable

*Centralized lubricating oil supplying is convenient

*Castings of lathe are to use lost foam foundry(short for LFF)technique.Castings

are wearable with good quality and dealt by aging.



Company

Dalian Guofeng Machine Tools Co., Ltd is located in Zhuanghe, Dalian City, China. It is one of the

biggest enterprises in China, belonging to Dalian Changsheng Lathe Co., Ltd. Our company is a professional manufacturer which develops and produces CNC vertical lathes, conventional vertical lathes, heavy-duty horizontal lathes, vertical multi-tool lathes and so on. Our company has the high-class processing line of heat treatment. Our products are famous for numerous varieties, complete range of specifications, advanced technology, good quality, and attractive appearance.



Our company was established in Jan.2002, which is the earliest-founded private enterprise specializing in lathe in China. We have 31,000 square meters of factory, 88 machines, and 330 employees, including 20 technicians, 9 senior engineers. 85% of our employees are skilled workers. For many years, we have innovated the former traditional production technology and method. Now we adopts hydrostatic guide way. The spindle is to use NN30(Grade D)bearing and able to turn precisely. Our products can make finish turning with good carrying capacity, little noise and long service lifetime. The machines tools made have enjoyed great popularity both at home and abroad.



Staffs in our factory insist on the strategy: To the quality strives for the survival, reputation strives for service, innovation strives for development, and management strives for effectiveness. Through our continuous efforts and technical innovation, “Jinxin” brand vertical lathes have awarded “Famous brand products” by Dalian Government which is the unique vendor in this line in Dalian. Lathes produced by us have got European CE certificate, ISO 9001:2008 quality management system and 5 technical patents. Welcome to our factory.Wish we will have a pleasant cooperation and common development.

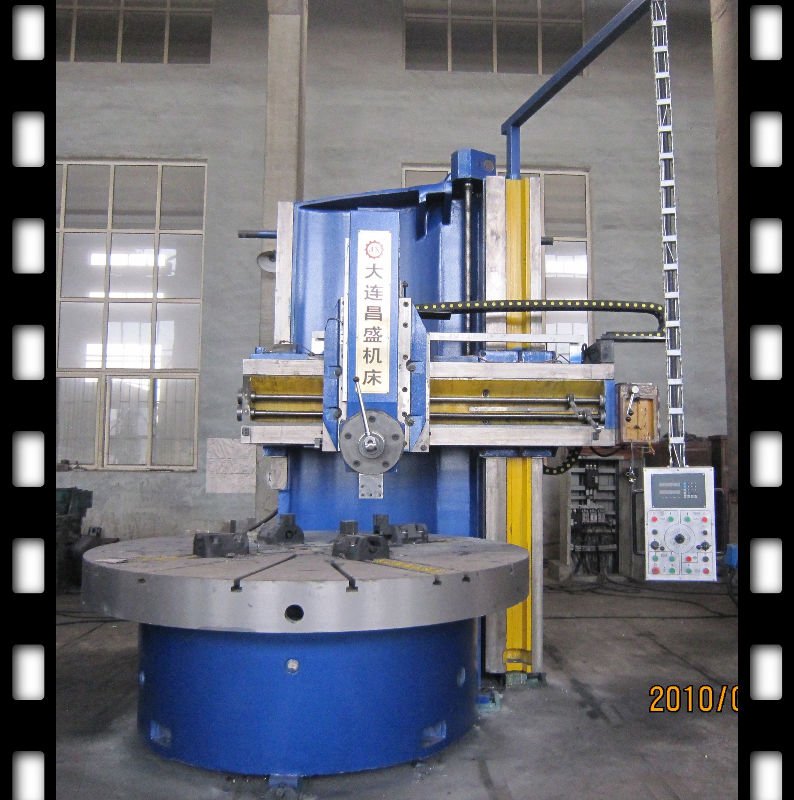

Pictures of lathe

Pictures of workshop

Company Profile

Dalian Guofeng Machine Tools Co., Ltd is located in Zhuanghe City, Dalian, China. It's a new big factory, belonging to Dalian Changsheng Lathe Co., Ltd which was established in Jan, 2002.

Our company is a professional manufacturer which develops and produces CNC vertical lathes, conventional vertical lathes, heavy-duty horizontal lathes, deep hole machining lathes, bearing grinders and so on.

Single column veritcal lathe models:C5112, C5116, C5123, C5125, C5131.
Double column vertical lathe models: C5225, C5231, C5240, C5250, C5263, C5280, C52100.

Our products are famous for numerous varieties, complete range of specifications, advanced technology, good quality and attractive appearance.

We were established in Jan 2002, which is the earliest-founded private enterprise, specializing production of vertical lathes in China. It has 31,000 square meters of factory, about 100 machines, advanced fabrication plants and powerful technical forces. We have 330 employees, including 20 technicians, 9 senior engineers. 85% of our employees are skilled workers who are top of their profession.

For many years, we have innovated the former traditional production technology and method. Now we adopts hydrostatic guide way. The spindle is to use NN30 (Grade D) bearing and able to turn precisely. All the digital mechanism, hydraulic parts and electrical component use famous-brand products in China. Our new products can make finish turning with good carrying capacity, little noise and long service lifetime.

The vertical lathe machines made by us have enjoyed great popularity both at home and abroad. For several years, we have exported our lathes to America, Brazil, Malaysia, Thailand, Vietnam, South Korean, etc.

Through continuous efforts of technicians and technical innovation many times, "JX" brand vertical lathes have awarded "Famous brand products" by Dalian People's Government which is the unique vendor in this line of Dalian.
And our company has obtained certificates of "ISO9001:2008" quality system and 5 technical patents. Our vertical lathes have got European CE certificate.

Staffs in our company insist on the strategy: To the quality strives for the survival, reputation strives for service, innovation strives for development, and management strives for effectiveness.
