  • automatic relay test set

automatic relay test set

 Advanced three pautomatic relay test set. PC control through user friendly MPWIN Relay Test Software. High accuracy and high power over wide range. Suitable for IEC61850 GOOSE simulation, subscription and sampled value publishing. CE, FCC.

Product Details

Quick Details

Description



Advanced three pautomatic relay test set. PC control through user friendly MPWIN Relay Test Software. High accuracy and high power over wide range. Suitable for IEC61850 GOOSE simulation, subscription and sampled value publishing. CE, FCC.







Hardware configuration

MP3000F: 6 x 30A, 4 X 125V, 0-265 V aux dc, 0-3 A high burden current output, 8 bin inputs, 4 Bin outputs. Suitable for IEC61850 GOOSE simulation, subscription and sampled value publishing.



MP3000FH: 6 x 30A, 4 X 300V, 0-265 V aux dc, 0-3 A high burden current output, 8 bin inputs, 4 Bin outputs. Suitable for IEC61850 GOOSE simulation, subscription and sampled value publishing.



Product Specifications

Current generators: 6 independent generators in two groups.

                                Each group is of 3 generators with common neutral.

Max current: 30 A ac- 20 A dc

Resolution: 0.03m A(0-0.3 A). 0.3m A (0.3-3.0 A). 1.0m A(3.0 -30A)

Accuracy: Error ≤ 0.1% of setting value. (I ≥ 0.2 A) error < 0.1% of setting value ± 200 µa. (I < 0.2 A)

Harmonic distortion: 0.2 A -30 A≤ 0.2%

Response time: ≤100µS

Power: 5A : 60 VA. 30 A : 350 VA max

Output time: Continuous (I ≤ 10 A). 100S (10 A < I≤20 A). > 20 S(20A<I ≤ 30A)

Voltage generators: 4 independent generators with common neutral.

                                4th voltage generator can be 3U0 or independent.

Max voltage AC: 125V L-N/ 250 V L-L (MP3000F). 300V L-N/600V L-L( MP3000FH)

Amplitude range of DC: ± 176 V(MP3000F) , ± 424 V ( MP3000FH)

Resolution: 4 mV(MP3000F),10 mV(MP3000FH)

Accuracy: Error ≤0.1% of setting from 10 V …125V(MP3000F).

Error ≤0.1% of setting from 24 V …300V( MP3000FH)

Harmonic distortion: ≤ 0.2%(10- 125 V..MP3000F) ≤ 0.2%(24- 300 V MP3000FH)

Response time: ≤100µS

Power: ≥ 40 VA (57V) . ≥100VA(100V- 300V)

Output time: Continuous

Frequency:

Range (sine wave): DC...1000Hz

Range (transient ): DC…3000Hz

Accuracy: 0.01%

Resolution: 0.001Hz

Phase angle:

Range: -360°…+360°

Accuracy: ≤0.2º

Resolution: 0.05º

Aux DC:

Range: 0-265 V Variable, Independently controlled

Power: 100 W max

High Burden Current Output:

Range:  0-3 AMP

Power: 100 VA

Max Voltage: 100 V

Max Binary Input: Can trigger by GPS

Numbers:8

Input sensing: Automatically detects the changeover of a dry or a wet contact

Sensing range: Wet contact( 24- 250V DC)

Resolution: 50 µS

Max. measuring time: Up to 99,999 S

Binary output:

Numbers:4

Type: Potential free



General specifications:

National standard: DL/T624-1997

AC Mains input voltage range: 110- 265 V

AC Mains voltage frequency: 45- 65 Hz

Operating temperature: -5 TO +50 ° C

Relative Humidity: 5-95% non condensing

Interface: Ethernet for PC connection, Optical for 61850

EMC: EN 61326-1 : 2006

          EN 61000-3-2 : 2006

          EN 61000-3-3: 1995 + A1: 2001+ A2:2005

         FCC Part 15 Class A

LVD: EN 61010-1:2001

Max Power Consumption: 2000VA at 230 V; 1000VA at 115 V



Standard accessories: Test lead set and connectors with a canvas carry bag. Shoulder carry bag for MP3000. Transportation case.



Optional features: Contact us before order

Analog inputs:One dc current: 0-20 mA , Resolution 2 µA , Accuracy : 0.05%

                          One DC voltage: ± 10 V, Resolution :1 mV, Accuracy: 0.05%

Integrated GPS: For end to end test

Company Profile

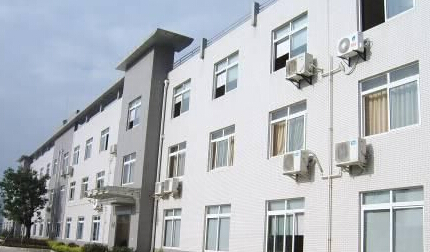

 Founded in 2000 and headquarter located in Chengdu, China, Tesient Instrument has engaged in R&D, manufacturing and sales activities for power system test equipments since then.In 2001, Tesient brought M2000 series relay test equipment to the market, which using the DSP and switching amplifier technologies, making it an easy control, big power and light-weighted relay test kit.Since 2003, Tesient developed ME2000, MC2000 serries relay test equipment, which were of local control with display, making them capable of self operation without external PCs.In 2004, Tesient developed MD2000 series 6-phases relay test equipment, and power amplifier for power system simulation.In 2008, Tesient developed MP3000 series 6-phase relay test equipment, by using Tesient’s high efficient linear amplifier technology and divided ranges, MP3000 can provide high accurate outputs with excellent signal quality.
In 2009, Tesient developed MF3000 series digital relay testers for substations implementing IEC61850 standards.Since 2004, Tesient began to sale its products world wide. Till now, Tesient has sold more than 200 sets of relay test kits to more than 15 countries.
Recently, Tesient upgraded ME2000 and MC2000 to ME3000 and MC3000. The new versions keep the original version’s local control and display features, but use Tesient’s highefficient linear amplifier technology thus having higher accuracy and stable voltage and current outputs. These two products are low cost oriented, therefor can provide customers cheap and cost-effective products. Refer to individual product specifications for details.
