• ZX6350C, ZX6350Z Universal milling machine

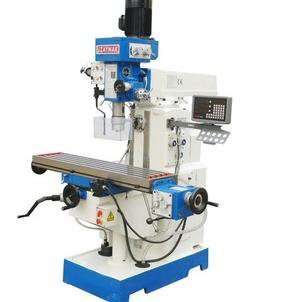

ZX6350C, ZX6350Z Universal milling machine

ZX6350Z can make vertical milling spindle auto-feeding Headstock swivels 45 degree left and right. Universal veritical horizontal milling and drilling machine Halogen work light Powered quill feed Please contact:wangxun124@163.com

Product Details

Quick Details

Description


Specifications ZX6350C ZX6350Z
Max.drilling dia. 5030 5030
Spindle taper MT4R8ISO30ISO40 MT4R8ISO30ISO40
Max.vertical milling dia. 25 25
Max.boring dia. 120 120
Distance.spindle to table surface 100-480 140-490
Spindle speed range(Vertical/Horizontal) 115-1750/40-1300 90-2000/38-1310
Spindle travel 120 120
Table size 1120×280 1120×280
Table travel 600×260 600×260
Overall dimension 1400×1630×2350 1400×1630×2350
Main motor power(Vertical/Horizontal) 0.85/1.5;2.2 2.2 ;2.2
N.W./G.W. 1200×1350 1200×1350

Company Profile

 Chizhou Household Machine Tool Co., Ltd., established in 1958, locates in Chizhou City of Anhui Province. The former name is Guichi Agriculture Machinery Factory, which owns a long history after several evolutions. Our formerly produced products include diesel engines, walking-tractors, agricultural motors and so on. Since 1986, our company has switched to manufacture household combination machine tools - multi-purpose machines for European and American markets, renamed as Anhui Chizhou Household Machine Tool Co., Ltd.

We are specialized in small size machine tools and CNC machines, and are one of the five important enterprises of small-size machine tools, "Provincial High Technological Enterprise", and "National Export Base of Mechanical and Electrical Products", with direct import and export right. We take the quality as life and we establish a scientific and serious quality guarantee system. Our quality system is ISO9001 certified. We gained CE certificate from TUV in 2007 for all of our products.

There are nearly 400 personnel in our company, including 72 technological developing and research persons. We have a technology research team headed by Mr. Xu Xiangtai who is a nationally famous CNC expert, and a provincial technology center was founded by us, too.

Our company is divided into north and south areas. The total area is 150,000 square meters. The workhouse area is 69,000 square meters. The south area, of 90,045 square meters, is located in Industrial Zone of South Part of Chizhou City with standard workhouses and multi-offices of 36,000 square meters. The south area is the center of decision, production, technology development and research, marketing and management of our company and takes on the assembly work of main parts and precisions parts. The north area, of 59,400 square meters, is beside the south part of Yangtze River with the workhouses of 33,000 square meters, and takes on the work of foundry, spare part manufacture, heat treatment and packing.

chizhou machine
