ZPS Series rotary tablet press

ZPS Series Advanced Mini Rotary Tablet Press with PLC Touch Screen Control System is designed to press both round and irregular shapes of tablets from various kinds of granular materials.

Product Details

Quick Details

Description

Model



ZPS024

ZPS016

ZPS008

Number of Station

 Unit

24

16

8

Tool Type



IPT19
(EU19)
BB

IPT1'
(EU1')
D

IPT1'
(EU1')
D

Max. Diameter of Tablet

mm

13

16

22

Max. Thickness of Tablet

mm

6

7

7

Max. Depth of Fill

mm

15

18

18

Max. Capacity

tablet/h

21,600-51,840

14,400-28,800

7,200-14,400

Rotary Speed

rpm

15 - 30

Upper Punch Entry

mm

2-8

2-8

2-8

Max.Pre-compression

kN

10

Max.Main Compression

kN

60

Power of Main Motor

kW

2.2

Dimension

mm

747 x 800 x 1628

Weight

kg

550


ZPS Series Advanced Mini Rotary Tablet Press with PLC Touch Screen Control System is designed to press both round and irregular shapes of tablets from various kinds of granular materials. It is an excellent press for laboratory or small-scale batch production, which is an upscale from using other counter top rotary presses in the marketplace. The turret carries 8/16/24 sets of punches and dies, so 8/16/24 tablets will be pressed for each revolution of the turret. During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted. The mechanical buffer unit will prevent punches and apparatus from overload damage.

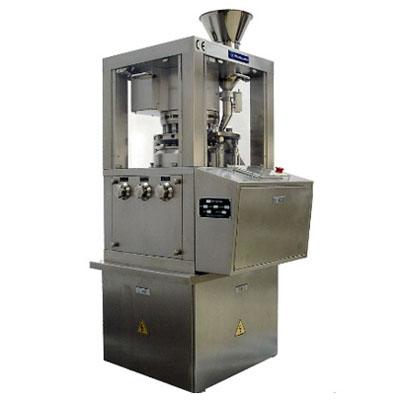

ZPS Series rotary tablet press

It is a rugged design with high quality stainless steel construction to meet the cGMP Standard; and fully enclosed for a cleaner operating environment. Custom engraving of letters or logos are available upon request. The maximum diameter of tablet is 22mm for round or other irregular shapes of tablets.

Main Features of ZPS Series Advanced Mini Rotary Tablet Press  :
New User's Friendly HMI & Color Touch Screen Control Operations.
Pre-Compression System.
Main Compression System.
Ejection Force Monitoring System.
Automatically Stops when overload occurred for protecting the punches and dies.

Company Profile

Sino Pharmaceutical Equipment Development (Liaoyang) Co., Ltd. (SINOPED) is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPEC International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are glass-lined reactors, fermentors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our abroad customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from home and abroad.
