• ZD3000-V Folding Machine

ZD3000-V Folding Machine

 Folding time can be automatically selected, five folds(max): three-horizontal & Two-longitudinal. Folding size(max): 3000x3000mm, can work with various flatwork ironing machine to realize automatic folding.

Product Details

Quick Details

Description


折叠宽度 3000mm
折叠次数 5-8 times
折叠速度 10-50m/min
压缩空气 0.4-0.6 Mpa
额定功率 1.66KW
外形尺寸 (长*宽*高) 425*3200*1800 mm
整机重量 1800KG

Features

1. Folding time can be automatically selected, five folds(max): three-horizontal & Two-longitudinal. Folding size(max): 3000x3000mm, can work with various flatwork ironing machine to realize automatic folding.

2. Advanced technology adopted, the folder is equipped with four motors and two frequency converters to improve the folding efficiency, each fold is controlled independently,

3. PLC programmable controller can be rotated within 270°, anti-interference. Perfect man-machine interface, self-diagnostic function and safety system guarantee the easy daily maintenance.

4. Initiate static eliminator to avoid static generation, improve the stability and reliability.

5. Unique folding method for fifth fold, droved by air, protecting the linens and prolong its service life.

Company Profile

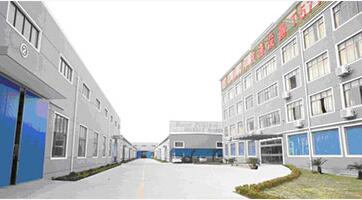

 Shanghai Lijing Washing Machinery Manufacturing Co., Ltd. is located in the light industrial zone in Fengxian district of Shanghai - Fengcheng Town. With more than ten years experience in the professional laundry equipment design, development, production and sales , starting from the twentieth century, a series of laundry equipment are sold to nationwide and exported to Europe, South America, Africa and other regions, covering hotels, schools, hospitals , military, professional laundry companies etc., earned much praise from our customers.

Our company mainly produces fully suspension automatic industrial washing machines, barrier washer extractor, horizontal washing machine, vertical washing machine, hydro-extractor, automatic dryer, multi-roller ironing machine, dry cleaning machine, ironing table, washer dryer and other laundry equipment. Inspected by strict ISO9001 quality management system assessment and tested by Metrology and Quality Inspection in Fengxian District of Shanghai, adopted and implemented with the WTO international business model. The produce is in beautiful and durable, and also with whole wide variety. Either from the appearance or quality, both are in the lead position in the washing machine industry.
