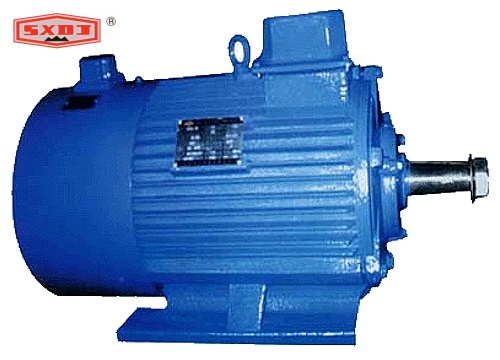

YZP series crane and metallurgical VVVF three-phase asynchronous motors based system can achieve variable speed frequency control devices for power supply speed three-phase asynchronous motor with frequency conversion device; achieve energy savings and control automationpurposes. With high efficiency, wide range of speed, accuracy, stable operation of braking and overload range, especially for applications that require variable frequency tone, short-term or intermittent cycle run frequent starting and braking of the occasion. Motor basic technical requirements to meet the requirements of IEC34-1 and GB755 Standard mounting dimensions conform to international standards IEC72.The motor can be attached to the installed thermal protection, heater, encoder, electromagnetic brake, speed switch and tachogenerator attachments to meet the demand for user support.
For example: YZP 250M1-4
Y: three-phase asynchronous motor
Z: For crane and metallurgical USES
250: Center Height (mm)
M1: The first core length of the medium-sized base
4: Pole number
Conditions of use and its performance
1, Applies to the high carrier frequency of the inverter output voltage.
2, Rated voltage 380V, rated frequency of 50Hz.
3,Insulation class F, IP54 and IP55.
4, Speed ??range 3Hz to 100Hz, 50Hz for constant torque run, 50 ~ 100Hz for constant power operation.
5, Altitude not exceeding 1000m, the Class F ambient temperature ≤ 40 ° C, the H level ≤ 60 ° C, relative humidity less than 90%.
7, Cooling method, 112 to 132 frame size for the fan-cooled (IC411) 160 to 355 frame size for his fan-cooled (IC416)
8, Stator winding Y connection.
9, Rated voltage, frequency, can withstand 2 times the rated torque overload lasted 1min.
Rated voltage: 380V Rated frequency: 50Hz
Power range: 3KW～450 KW Protection class: IP44 or IP54
Insulation class: Class F Cooling method: IC416 or IC411
Working mode: Pole number: 4,6,8,10
