The working efficiency of the production line is largely decided by the conveying system. When there is occasional stop on the downstream packaging system (e.g. label change), the forepart of the production line cannot be effected. At the same time, the transferring system must connect the equipments in the forepart and rear part well. Newamstar’s product is of good rigidity, light weight and good exchanging ability. It is applied for bottles whose diameter is φ40~φ110 mm.
Non-pressure conveying system enables the multi conveying lines become single conveying line during work. The electric control system adopts PLC to control the running of filled bottle conveying, to realize the automatic speed accelerating or slowing and automatic buffering.
Following are the main characteristic and technical parameter for YWG-8000 pillow type aseptic filling machine and YWG-12000 brick type aseptic filling machine.

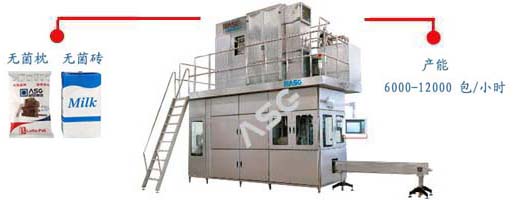

YWG-8000 pillow type aseptic filling machine
1. Simple and compact structure, easily maintenance. Dimension is 5000(L)*1500(W)*5000(H)。
2. High level automation, easily operate, only one labor required for normal production.
3. High output, 8000-12000bags/H. Increase production efficiency, reduces power consumption and cost.
4. Advanced sterilization techniques, adopt hydrogen peroxide immerge, animalcule affixed on packaging material can be killed sufficiently so as to increase the sanitation quality of packaging material.
5. High speed for monitoring, each process during production can be monitored real time and record.
6. Mainly filling for pillow type liquid milk product with capacity 200-250ml.

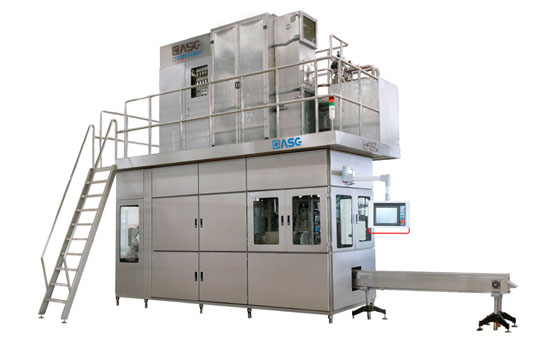

YWG-12000 brick type aseptic filling machine
1、simple and compact structure, easily maintenance. Dimension is 6000(L)*1500(W)*5000(H)
2、High level automation, easily operate, only one labor required for normal production
3、High output, 12000-16000bags/H. Increase production efficiency, reduce power consumption and cost.
4、 Advanced sterilization technics, adopt hydrogen peroxide immerge, animalcule affixed on packaging material can be killed sufficiently so as to increase the sanitation quality of packaging material
5、High speed for monitoring, each process during production can be monitored real time and record.
6、Filling for brick type liquid milk product, tea, fruit-vegetable juice and so on with capacity 200-1000ml.
Jiangsu ASG Packaging Machinery Group Co., Ltd. is located in Jinfeng Industrial Zone, Zhangjiagang city, owns a 30,000m2 international standard workshop. ASG professionally researches, develops and manufactures beverage-packaging machinery and dairy packaging machinery. We bought several sets numerical control machines from American and Japan. The fixed assets of ASG exceed RMB 100 million. Since its foundation, ASG has concentrated on a single area of beverage and milk product packaging machinery. Recently, we already finished some researches and were going on some project, including "automatic high speed aseptic filling machine of liquid food", which is the state torch program, "mono-block filling machine of juice with pulp", "liquid milk & beverage continuous high-speed packing robot" etc. We took part in national standard making, and then we became the leader in the industry. Moreover, we cooperated with foreign and domestic famous enterprises, such as Nescafe, Coca Cola, Pepsi, Bright Dairy, Robust, Arawana, Dongpeng, Yang Jiajia, Tianjin Nanji, Shanghai Yangzhong, Tianjin Huaqi Group etc, also our products are exported to all over the world. The company always hold the philosophy of "the quality wins the market, the brand forms the success". We, full of enthusiasm and sincerity, warmly welcome domestic and overseas customers.
