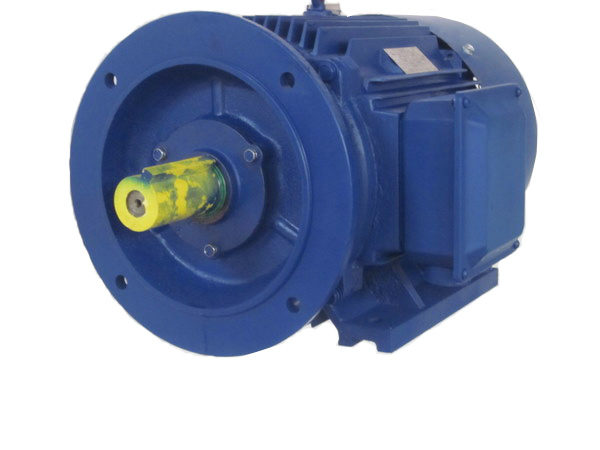

YVP Series Frequency Conversion Adjustable Speed Three-phase Asynchronous Motors, combining the advanced technology, adopt squirrel cage type structure. The independent cooling fan can guarantee the good cooling effect under different speed. Output constant torque running at 5(3)-50Hz, output constant power at 50-100Hz. Its installation dimensions and power rank conform to IEC standard.
◇Ambient temperature: -15° C≤ Θ≤ 40° C
◇Altitude: Not exceed 1000m
◇Power range: 0.55-365kW
◇Rated voltage: 380V
◇Rated frequency: 5(3)~50Hz; 50~100Hz
◇Protection class: IP44/IP54
◇Insulation class: F
◇Cooling method: IC411
◇Working duty: S1 (continuous)
◇Basic Installation Method B3 B35 B5
◇Frame size: H80-315
◇Connection method: "Y" connection for 55KV and below, "Δ" connection for 55KV and above.
◇Wide range of adjustable speed
YVP Series are widely used for driving equipments of various machineries, such as machine tools, blowers, pumps, compressors, transport, agricultural and food processing.
