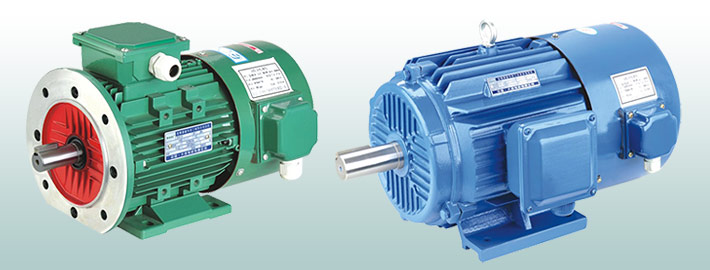

YVF2 Series frequency-variable and speed-adjustable three phase asynchronous motor

YVF2 series frequency-variable and speed-adjustable three phase asynchronous motor are suitable for running in frequency change and speed regulation system which the power is supplied by a frequency converter. This new series of product desingned unitedly in the country can be mated with all kinds of SPWM frequency changer and speed regulation devices and is equipped with a separate cooling fan which ensure the motor for good cooling at various speed. They can be used in machine tool, metallugic industry, textile, printing and dyeing, transportation, chemical industry, mine and for seep regulation of fans and pumps. Please contact us:zhangmimin122@126.com

Product Details

Quick Details

Description

  YVF2 series frequency-variable and speed-adjustable three phase asynchronous motor are suitable for running in frequency change and speed regulation system which the power is supplied by a frequency converter. This new series of product desingned unitedly in the country can be mated with all kinds of SPWM frequency changer and speed regulation devices and is equipped with a separate cooling fan which ensure the motor for good cooling at various speed. They can be used in machine tool, metallugic industry, textile, printing and dyeing, transportation, chemical industry, mine and for seep regulation of fans and pumps.

Technical Data
Centre height of frame: 80~355mm
Power range:0.55~315kW
Rated voltage:380V or order
Rated frequency:50Hz or 60Hz
Protection class:IP54 or IP55
Insulation class:F
Duty type: S1
YVF2 series frequency-variable and speed-adjustable three phase asynchronous motor's technical data


Type

Output

Current

Rated torque

Power range

Power fator

Locked-rotor torque

Locked-rotor current

Pull-out torque

Minimum torque

kW

(A)

(N.m)

(Hz)

(Hz)

Rated torque
Tst/TN

Rated current
Ist/IN

Rated torque
TMax/TN

Rated torque
TMax/TN

YVF2-80M1-4

0.55

1.5

3.5

5-50

50-100

2.0

9.0

2.8

1.7

YVF2-80M2-4

0.75

2.0

4.7

1.6

YVF2-90S-4

1.1

2.8

7.0

YVF2-9OL-4

1.5

3.7

9.5

YVF2-100L-4

2.2

5.1

14

1.5

YVF2-10Q2-4

3.0

6.8

19

YVF2-112M-4

4.0

8.7

25.4

YVF2-132S-4

5.5

11.4

35

1.4

YVF2-132M-4

7.5

15.3

47.7

YVF2-160M-4

11

22.1

70

YVF2-160L-4

15

30.1

95.5

YVF2-180M-4

18.5

35.4

117.1

1.2

YVF2-180L-4

22

41.6

140.9

YVF2-200L-4

30

55.9

190.9

YVF2-225S-4

37

68.2

235.5

YVF2-225M-4

45

82.5

286.4

1.1

YVF2-250M-4

55

101

350.1

3-50

1.7

YVF2-280S-4

75

132.3

477.5

1.0

YVF2-280M-4

90

157.4

572.9

YVF2-315S-4

110

191.4

700.2

YVF2-315M-4

132

227.6

840.3

YVF2-315L1-4

160

274.2

1018.1

YVF2-315L2-4

200

341.6

1273.2

0.9

YVF2-355M1-4

220

367.5

1401

YVF2-355M2-4

250

420.9

1592

YVF2-355L1-4

280

470.3

1783

YVF2-355L2-4

315

528.2

2006



Type

Output

Current

Rated torque

Power range

Power fator

Locked-rotor torque

Locked-rotor current

Pull-out torque

Minimum torque

kW

(A)

(N.m)

(Hz)

(Hz)

Rated torque
Tst/TN

Rated current
Ist/IN

Rated torque
TMax/TN

Rated torque
TMax/TN

YVF2-80M1-6

0.37

1.26

3.5

15-50

50-100

1.8

9.0

2.6

1.7

YVF2-80M2-6

0.55

1.74

5.3

1.6

YVF2-90S-6

0.75

2.03

7.2

YVF2-90L-6

1.1

2.84

10.5

YVF2-100L-6

1.5

3.70

14.3

1.5

YVF2-112M-6

2.2

5.22

21

YVF2-132S-6

3.0

6.98

2S.7

YVF2-132M1-6

4.0

9.17

38.2

1.4

YVF2-132M2-6

5.5

12.2

52.5

YVF2-160M-6

7.5

16.5

71.6

YVF2-160L-6

11

23.5

105

YVF2-180L-6

15

30.5

143

1.2

YVF2-200L1-6

18.5

37.2

177

YVF2-200L2-6

22

43.0

210

YVF2-225M-6

30

58.0

287

YVP2-250M-6

37

69.5

353

20-50

1.5

1.1

YVP2-280S-6

45

84.1

430

YVF2-280M-6

55

102

525

1.0

YVF2-315S-6

75

138

716

YVF2-315M-6

90

166

860

YVF2-315L1-6

110

202

1050

YVF2-315L2-6

132

239

1261

YVF2-355M1-6

160

2S5

1528

0.9

YVF2-355M2-6

200

356

1910

YVF2-355L-6

250

445

2388
