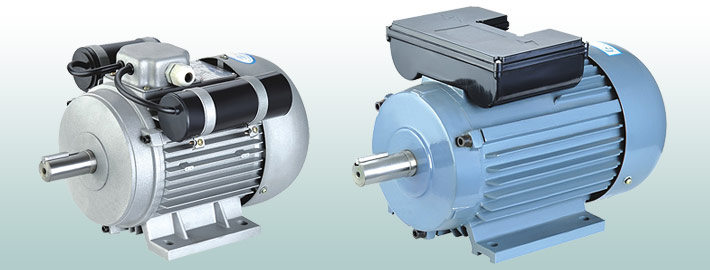

YL Series two-value capacitor mono phase asynchronous motor

YL series motor is designed and manufactured according to National JB/T7588 standard.It has the characteristics of good starting and operation.Low noise,small measurement and convenient main?tenance.The motor is widely used in air compressor,pump and various kinds of machines. Please contact us:zhangmimin122@126.com

Product Details

Quick Details

Description

 YL series motor is designed and manufactured according to National JB/T7588 standard.It has the characteristics of good starting and operation.Low noise,small measurement and convenient main?tenance.The motor is widely used in air compressor,pump and various kinds of machines.

Technical Data
Centre height of frame:71~100mm
Power range:0.25~3.7kW
Rated voltage:220V or order
Rated frequency:50Hz or 60Hz
Protection class:IP44
Insulation class:B
Duty type:SI

YL series two-value capacitor mono phase asynchronous motor's technical data


Type

OutPut

Current

Speed

Efficiency

Power factor

Locked-rotor torque

Locked-rotor current

Pull-out torque

Pull-out torque

kW

(A)

(r/min)

η(%)

(cosφ)

Rated torque
Tst/TN

Rated current
Ist/IN

Rated torque
TMax/TN

Rated torque
TMax/TN

YL7112

0.37

2.73

2800

67

0.92

1.8

5.5

1.6

1.0

YL7122

0.55

3.88

2800

70

0.92

1.8

1.6

1.0

YL8012

0.75

5.15

2800

72

0.92

1.8

5.5

1.6

1.0

YL8022

1.1

6.85

2800

75

0.95

1.8

1.6

1.0

YL90S-2

1.5

9.44

2800

76

0.95

1.8

5.5

1.6

1.0

YL90L-2

2.2

13.67

2800

77

0.95

1.7

1.6

1.0

YL100L1-2

3.0

18.2

2900

79

0.95

1.7

5.5

1.6

1.0

YL100L2-2

3.7

21.9

2900

80

0.95

1.7

6.0

1.6

1.0

YL7114

0.25

2.03

1400

62

0.92

1.8

5.0

1.6

1.0

YL7124

0.37

2.81

1400

65

0.92

1.8

1.6

1.0

YL8014

0.55

3.88

1400

68

0.92

1.7

5.0

1.6

1.0

YL8024

0.75

5.22

1400

71

0.92

1.7

1.6

1.0

YL90S-4

1.1

7.21

1400

73

0.95

1.7

5.0

1.6

1.0

YL90L-4

1.5

9.57

1400

75

0.95

1.7

1.6

1.0

YL100L1-4

2.2

13.9

1400

76

0.95

1.7

5.0

1.6

1.0

YL100L2-4

3.0

18.6

1400

77

0.95

1.7

5.5

1.6

1.0
