• YL-500 Toilet Tissue Automatic Packaging Machine

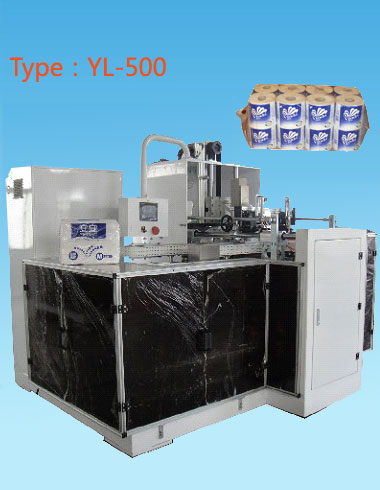

YL-500 Toilet Tissue Automatic Packaging Machine

YL-500 Toilet Tissue Automatic Packaging Machine is widely used in sealing of plastic packaging of toilet tissue.The efficiency of packaging to be improved by more than 250%. Cut cost in manufacture and operation management, save more working spaces and have processes more integrated.

Product Details

Quick Details Parameter

Power supply: : 3 phase 380V+N+PE
Installation capacity: : 20KW
Pneumatic system: : 4.5~6 kgf/c㎡
Air consumption: : 0.5m3/min
Overall dimensions: : 2750mm×2100mm×2000mm
Weight: : 4000KG
Packing range: : L(200~360)×W(80~250)×H(270~720)mm
Packing speed: : 20~22bags/min

Description

Main components:
1. PLC( KEYENCE)
2. Photoelectric sensor(KEYENCE)
3. Low-voltage apparatus(SCHNEIDER)
4. Servo motor(Panasonic)
5. Pneumatic components (AIRTAC,MINDMAN)

YL-500 Toilet Tissue Automatic Packaging Machine

Key characteristics:
1.Widely used in sealing of plastic packaging of  toilet tissue
2.The efficiency of packaging  to be improved by more than 250%
3.Cut cost in manufacture and operation management, save more  working spaces and have processes more integrated
4.Cut more than 50% labor costs in toilet tissue's packaging
5.PLC and servo motor, as the control and drive units,which greatly simplify the complex gearing and improve the
automatic level of the equipment,as well as the guarantee for the equipment's stability
6.With the touch screen that renders the system operation more personalized the parameters can be set in-time, making
human-machine interaction possible
7.Manual feeding, automatic sealing and packing output
8.Leftover material automatic recycled
9.Applicable for auto sealing of products of all sizes

Company Profile

Shanghai Yuliu Packaging Machinery Co., Ltd. is a modern standardization company, which integrates design, manufacture, installation, calibrating, sale, after-sales service and technical training. Our company has been one of the top enterprises in this field with experienced mechanical experts, strong economic capability and abundant technical strength in China.
Our main products include packing and sealing machinery, stacking machinery and others. All of them are widely applied to the pack and seal of disposable paper of daily necessities for women and babies, such as sanitary napkins, sanitary nursing pads, baby paper diapers, adult paper diapers, roll paper, kitchen paper, and wet tissue paper.
We always abide by our principles as below:
Management philosophy: honesty is out root, customers are our god.
Quality policy: to survive with quality, to develop with technology.
Service spirit: communicate sincerely, service endlessly.
We are looking forward to cooperating with new and old customers from domestic and overseas markets to create a bright future together. We warmly welcome you to visit our company.
