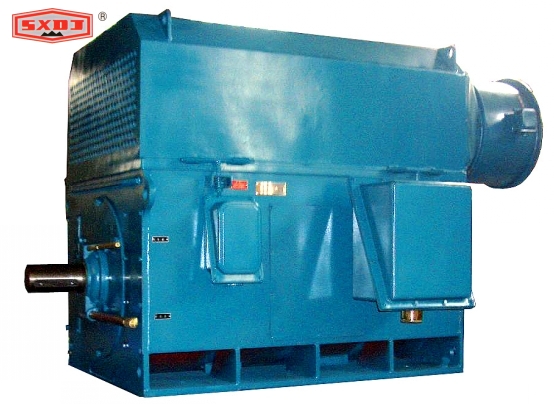

YKK series high voltage 6KV, 10KV three-phase asynchronous motor

YKK series high voltage 6kV, 10kV three-phase asynchronous motor is enclosed with air - air cooler in the latest high voltage motor design technology to produce cast aluminum rotor motor cage. It is IP44 or IP54 (see GB4942.1) cooling method is IC611, IC616 (see GB/T1993). Please contact us:yudafu091@yeah.net

Product Details

Quick Details

Description

YKK series high voltage 6kV, 10kV three-phase asynchronous motor is enclosed with air - air cooler in the latest high voltage motor design technology to produce cast aluminum rotor motor cage. It is IP44 or IP54 (see GB4942.1) cooling method is IC611, IC616 (see GB/T1993).

This series motor is efficient, energy-saving, noise, vibration, small size, light weight, reliable performance, easy installation and maintenance features, and has good insulating properties and moisture resistance. It can be directly used for 6kV, 10kV grid, without intermediate transformer equipment.

Applied to the drive shaft coupling drive various machinery and equipment, such as ventilators, compressors, pumps, crusher, cutting machine tools and other equipment, and available for the use of coal mine machinery industry, power plants, and as the prime mover.

This series motor and mounting IMB3, fixed based on continuous duty (S1) for the continuous rating of the benchmark. The rated frequency of 50Hz, rated voltage 6kV, 10kV, as users have special requirements in order to mutually agree.

Model Description:

For example: YKK4501-4

YKK: closed with air - air cooler cage rotor asynchronous motor

450 Height (mm) of the center of the base

4: Pole number

Rated voltage: 6KV,10KV                            Rated frequency: 50Hz

Power range: 140~5000 KW                     Protection class: IP44 or IP54

Insulation class: Class F                               Cooling method: IC611 or IC616

Working mode: S1                                        Pole number: 4、6、8、10、12

Company Profile

  The Shanxi Electric Motor Manufacturing Co., Ltd. (Shanxi motor factory) is the former State Ministry of Machinery Industry key enterprises in the production of small and medium-sized motor, motor has 50 years of manufacturing history, the company covers an area of 116,000 square meters, 800 employees working, which workstechnical staff of 108, with total assets of 218.77 million yuan, the annual production capacity of 100 million kW, the country's largest production base of small and medium-sized wound motor, the provincial "Trustworthy" units.
   The Company has the metalworking, electrical, stamping, assembly, tools, electrical maintenance, high pressure seven production plants, the main production equipment 533 sets. The company has a provincial-level enterprise technical centers and Shanxi Institute of special motor with strong technical innovation ability, national and updating new products Y3, the main research and development unit of the national motor industry YR3 YZR3 other series motor and industry standards the development of one of the units. The company in 1998 passed ISO9001: 1994 quality system certification, and in 2001 completed the ISO9001: 2000 Quality Management System revision replacement work.
      Production of basic series three-phase asynchronous motors, wound rotor three-phase asynchronous motors, crane and metallurgical three-phase asynchronous motors, VVVF three-phase asynchronous motors, 6kV, 10kV medium-sized high voltage three-phase asynchronous motors, varieties, specificationsfull. Of the company's technology center development and production of various special dedicated motor according to user requirements.Company product sales areas of the provinces and cities all over the country and exported to more than 30 countries in Europe and the United States, West Asia, South Africa and other. With a good reputation for quality, with several well-known domestic large enterprises to establish a long-term partnership. In order to further expand business scale, the company purchased 18 million sq m of land for the construction of a new plant, and then, the production will reach 500 million kW.
 Cuijun Lin, chairman, general manager with the staff is willing and all friends sincere cooperation and common development, we will provide a dedicated service.
