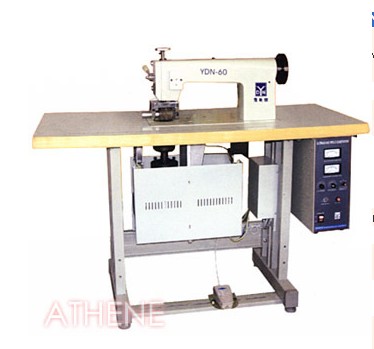

YDN-60-PC Standard Type Ultrasonic Lace Machine
YDN-60-Standard Type Ultrasonic Lace Machine can be applied to lace garment, skirt, sports wear, bra, night gown, hair decorations, packing stripe, colorful flag stripe, camp, raincoat, table cloth, chair cover, napkin, handkerchief, curtain, bed spread, respirator, protective coat and craft decorations, etc.
working power: : 220±5V 50Hz 10A
input power: : 2500w
output: : 20KHz
frequency: : 23mm-65mm
running speed: : 0-10m/min
effective width: : 0-65mm
environment temperature: : -10℃-28℃
machine weight: : 115KG
Overall Dimensions: : 1300mm×650mm×1500mm
1 、new type PC intellectual ultrasonic generator
2 、bottom mould with synchronization rotation function
3 、speed modulating system with double-circuit motor
4 、hand (or pneumatic) operation pattern mould lifting system
5 、multi-functional pattern mould stand & horizontal fine setting structure
6 、Double-barreled framework and heavy support board
1 、strong ultrasonic power, the maximum power up to 2500W, with small, big and large adjustable function, meets the cutting requirements of different materials and thickness.
2 、built-in PC chip, multi-circuit ultrasonic protection system to make the machine run safely
3 、the auto rotation of the bottom mould makes the wearing evenly, prolong its life and improve processing quality
4 、The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology
applied to lace garment, skirt, sports wear, bra, night gown, hair decorations, packing stripe, colorful flag stripe, camp, raincoat, table cloth, chair cover, napkin, handkerchief, curtain, bed spread, respirator, protective coat and craft decorations, etc.
Changzhou Athena Electronics Co., Ltd. has been engaged in the development and research of ultrasonic fabric welding machines and multifunctional fabric pleating machines for many years. Our management tenet is "Science First and Customers Superior".
Among them, our ultrasonic lace machines and multifunctional fabric pleating machines are popular with many customers for a wide application range and strong product features. They are widely used in many fields of napkins, tablecloth, window curtains, bed covers, ladies' skirts, art ornaments, hair decoration clips and clothes auxiliary materials, owing to special functions.
We have abundant ultrasonic lace cutting machines and garment fabric/cloth pleating machines on hand. Other special equipment can also be manufactured in accordance with special demands from our customers.
In addition, we carry on the business of fabric pleating, lace processing and pattern punching for collars, garments and auxiliary materials.
Our company manufactures sophisticated production equipment with good performance for our customers both at home and abroad. We have strong product research & developing capability and complete quality monitoring systems.
Our products are sold to such countries and regions as Hong Kong, Singapore, Indonesia, Japan, Italy, Vietnam, Russia, South Africa, Turkey, Taiwan area, France, Iran and India, enjoying a good popularity with our customers.
Our Managing Principle: "Use Sincerity & Deal with Concrete Matters Relating to Work, Taking Markets as Our Guide and Paying Attention to Quality" .
Our Striving Target: Creative & Developing, Exceed Ceaselessly .
