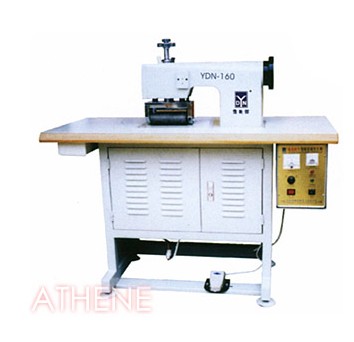

YDN-160-15K Super Strong Ultrasonic Lace Machine
YDN-160-15K Super Strong Ultrasonic Lace Machine can be applied to manufacturing garment lace, skirt flower, super width lace, lace for curtain, table cloth, craft decorations, special respirator, non-woven fabrics protection articles, air filter products, etc.
working power: : 220±5V 50Hz 6A
input power: : 2800w
output frequency: : 15KHz
running speed: : 0-5m/min
effective width: : 160mm
pattern mould: : 100mm-160mm
surrounding temperature: : -10℃- 28℃
machine weight: : 180KG
Overall dimensions: : 1300mm×650mm×1500mm
1 、15KHz large power automatic protection ultrasonic generator
2 、15KHz ultrasonic transducer
3 、super large head structure
4 、hand (or pneumatic available) operation pattern mould lifting system
5 、beautiful and solid electric cabinet type machine structure for easy daily maintenance
6 、Pattern mould quick-adjusting system
1 、extra large power to process all kinds of fabrics
2 、15KHz transducer, non-scalding
3 、famous branded large power components to make the main machine durable in use
4 、Multi-functional design to manufacture extra-width lace and craft decorations
Manufacturing garment lace, skirt flower, super width lace, lace for curtain, table cloth, craft decorations, special respirator, non-woven fabrics protection articles, air filter products, etc.
Changzhou Athena Electronics Co., Ltd. has been engaged in the development and research of ultrasonic fabric welding machines and multifunctional fabric pleating machines for many years. Our management tenet is "Science First and Customers Superior".
Among them, our ultrasonic lace machines and multifunctional fabric pleating machines are popular with many customers for a wide application range and strong product features. They are widely used in many fields of napkins, tablecloth, window curtains, bed covers, ladies' skirts, art ornaments, hair decoration clips and clothes auxiliary materials, owing to special functions.
We have abundant ultrasonic lace cutting machines and garment fabric/cloth pleating machines on hand. Other special equipment can also be manufactured in accordance with special demands from our customers.
In addition, we carry on the business of fabric pleating, lace processing and pattern punching for collars, garments and auxiliary materials.
Our company manufactures sophisticated production equipment with good performance for our customers both at home and abroad. We have strong product research & developing capability and complete quality monitoring systems.
Our products are sold to such countries and regions as Hong Kong, Singapore, Indonesia, Japan, Italy, Vietnam, Russia, South Africa, Turkey, Taiwan area, France, Iran and India, enjoying a good popularity with our customers.
Our Managing Principle: "Use Sincerity & Deal with Concrete Matters Relating to Work, Taking Markets as Our Guide and Paying Attention to Quality" .
Our Striving Target: Creative & Developing, Exceed Ceaselessly .
