• YDN-160- PC Super-width Ultrasonic Lace Machine

YDN-160- PC Super-width Ultrasonic Lace Machine

YDN-160- PC Super-width Ultrasonic Lace Machine applied to manufacturing garment lace, skirt flower, super width lace, lace for curtain, table cloth, craft decorations, special respirator, non-woven fabrics protection articles, air filter products, etc.

Product Details

Quick Details Parameter

working power: : 220±5V 50Hz 6A
input power: : 2500w2500w
Output frequency: : 20KHz
running speed: : 0-5m/min
effective width: : 150mm
pattern mould: : 100mm-150mm
surrounding temperature: : -10℃- 28℃
machine weight: : 170KG
Overall dimensions: : 1300mm×650mm×1500mm

Description

Basic components:
1 、new type PC intellectual ultrasonic generator, multi-circuit automatic protection circuit
2 、20KHz ultrasonic transducer conforming to international environmental protection requirements
3 、super large head system, extra-width pattern mould to process larger diameter
4 、hand (or pneumatic available) operation pattern mould lifting system
5 、beautiful and solid electric cabinet type machine structure for easy daily maintenance
6 、Pattern mould quick-adjusting system

Characteristics:
1 、built-in PC chip to protect automatically, easy and safe
2 、extra strong power output, with small, middle and large power for your choice to meet the cutting requirements of different materials
3 、Automatic frequency tracking system & ultrasonic soft starting technology to make the machine performance up to international level
4 、Installing pattern mould with larger diameter to manufacture special lace and craft flowers, etc.

Application case:
Manufacturing garment lace, skirt flower, super width lace, lace for curtain, table cloth, craft decorations, special respirator, non-woven fabrics protection articles, air filter products, etc.

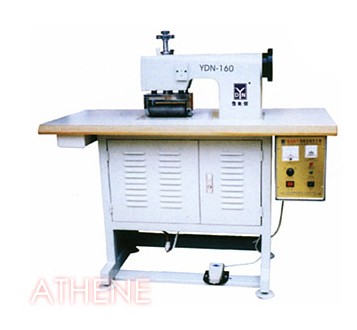

YDN-160- PC Super-width Ultrasonic Lace Machine

Company Profile

Changzhou Athena Electronics Co., Ltd.  has been engaged in the development and research of ultrasonic fabric welding machines and multifunctional fabric pleating machines for many years. Our management tenet is "Science First and Customers Superior".

Among them, our ultrasonic lace machines and multifunctional fabric pleating machines are popular with many customers for a wide application range and strong product features. They are widely used in many fields of napkins, tablecloth, window curtains, bed covers, ladies' skirts, art ornaments, hair decoration clips and clothes auxiliary materials, owing to special functions.

We have abundant ultrasonic lace cutting machines and garment fabric/cloth pleating machines on hand. Other special equipment can also be manufactured in accordance with special demands from our customers.

In addition, we carry on the business of fabric pleating, lace processing and pattern punching for collars, garments and auxiliary materials.

Our company manufactures sophisticated production equipment with good performance for our customers both at home and abroad. We have strong product research & developing capability and complete quality monitoring systems.

Our products are sold to such countries and regions as Hong Kong, Singapore, Indonesia, Japan, Italy, Vietnam, Russia, South Africa, Turkey, Taiwan area, France, Iran and India, enjoying a good popularity with our customers.

Our Managing Principle:  "Use Sincerity & Deal with Concrete Matters Relating to Work, Taking Markets as Our Guide and Paying Attention to Quality" .

Our Striving Target: Creative & Developing, Exceed Ceaselessly .
