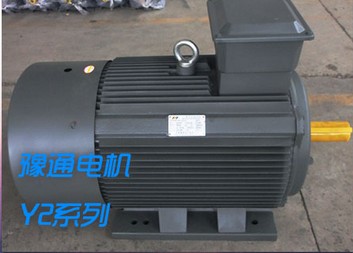

Y2 series three-phase universal induction ac electric motor

1.100% cooper wire winding 2.electricity saving 3.mainly used in universal fields, shuc as machine tools, pumps, blower. Please contact us:liqimei1121@163.com

Product Details

Quick Details

Description

Y2 series three-phase induction motors are a basic series of low voltage three-phase cage-shaped induction motors with a general application, improved on the basis of the Y series motors. The new series is composed of two types of designs, Y2 and Y2-E.

Y2 series has F class insulation, IP54 class protection and IP55 class protection of the wire box. The wires stretch out of the box in two ways, from the top and from one side of the frame.

Y2-E series suit the occasions when motors work continuously over a long period of time with a high load, such as to coordinate with blowers and pumps. The motor has a higher efficiency with less energy, large starting torque, low noise and less vibration. The frame ranges from 80 to 280.


Work environment:

Center height of frame size: 80-355

Insulation class: B   F

Protection class: IP44/IP54/IP55

Cooling method: IC411

Environment Tempreture: -15-+40 degree


Type-kw/hp

Type-kw/hp

Type-kw/hp

Type-kw/hp




Y2-801-2-0.75/1

Y2-132M-4-7.5/10

Y2-112M-6-2.2/3

Y2-160L-8-7.5/10



Y2-802-2-1.1/1.5

Y2-160M-4-11/15

Y2-132S-6-3/4

Y2-180L-8-11/15



Y2-90S-2-1.5/2

Y2-160L-4-15/20

Y2-132M1-6-4/5.5

Y2-200L-8-15/20



Y2-90L-2-2.2/3

Y2-180M-418.5/25

Y2-132M2-6-5.5/7.5

Y2-225S-8-18.5/25



Y2-100L-2-3/4

Y2-180L-4-22/30

Y2-160M-6-7.5/10

Y2-225M-8-22/30



Y2-112M-2-4/5.5

Y2-200L-4-30/40

Y2-160L-6-11/15

Y2-250M-8-30/40



Y2-132S1-2-5.5/7.5

Y2-225S-4-37/50

Y2-180M-6-15/20

Y2-280S-8-37/50



Y2-132S2-27.5/10

Y2-225M-4-45/60

Y2-200L1-6-18.5/25

Y2-280M-8-45/60



Y2-160M1-2-11/15

Y2-250M-4-55/75

Y2-200L2-6-22/30

Y2-315S-8-55/75



Y2-160M2-2-15/20

Y2-280S-4-75/100

Y2-225M-6-30/40

Y2-315M-8-75/100



Y2-160L-2-18.5/25

Y2-280M-4-90/120

Y2-250M-6-37/50

Y2-315L1-8-90/120



Y2-180M-2-22/30

Y2-315S-4-110/150

Y2-280S-6-45/60

Y2-315L2-8-110/150



Y2-200L1-2-30/40

Y2-315M-4-120/180

Y2-280M-6-55/75

Y2-355M1-8-132/180



Y2-200L2-2-37/50

Y2-315L1-4-160/218

Y2-315S-6-75/100

Y2-355M2-8-160/220



Y2-225M-2-45/60

Y2-315L2-4-200/270

Y2-315M-6-90/120

Y2-355L1-8-200/270



Y2-250M-2-55/75

Y2-355M-4-250/340

Y2-315L1-6-110/150

Y2-400M1-8-250/340



Y2-280S-2-75/100

Y2-355L-4-315/430

Y2-315L2-6-132/180

Y2-400M2-8-280/380



Y2-280M-2-90/120

Y2-355L1-4-280/380

Y2-355M1-6-160/220

Y2-400L1-8-315/430



Y2-315S-2-110/150

Y2-355L2-4-315/430

Y2-355M2-6-200/270

Y2-400L2-8-355/480



Y2-315M1-2-132/180

Y2-400M1-4-355/480

Y2-355L-6-250/340

Y2-400L3-8-400/540



Y2-315M2-2-160/220

Y2-400M2-4-400/540

Y2-400M1-6-280/380

Y2-400l4-8-450/610



Y2-801-4-0.55/0.75

Y2-400M3-4-450/610

Y2-400M2-6-315/430

Y2-400M1-10-160/220



Y2-802-4-0.75/1

Y2-400L1-4-500/680

Y2-400L1-6-355/480

Y2-400M2-10-185/250



Y2-90S-4-1.1/1.5

Y2-400L2-4-560/760

Y2-400L2-6-400/540

Y2-400M3-10-200/270



Y2-90L-4-1.5/2

Y2-801-6-0.37/0.5

Y2-400L3-6-450/610

Y2-400M4-10-220/300



Y2-100L1-4-2.2/3

Y2-802-6-0.55/0.75

Y2-132S-8-2.2/3

Y2-400L1-10-250/340



Y2-100L2-4-3/4

Y2-90S-6-03.75/1

Y2-132M-8-3/4

Y2-400L2-10-280/380



Y2-112M-4-4/5.5

Y2-90L-6-1.1/1.5

Y2-160M1-8-4/5.5

Y2-400L3-10-315/430



Y2-132S-4-5.5/7.5

Y2-100L-6-1.5/2

Y2-160M2-8-5.5/7.5

Y2-400L4-10-355/480



Company Profile

Founded in 2001 and located in the center of the Economy Development Zone, Henan Yutong Electric Motor Shares Company is one of the largest motor manufacturers in Henan Province.

YUTONG motor mainly produce Y, Y2, YKP, Y2KP series three-phase induction motors and Y3, YX3 high efficienct motors, YB2, YB3, YBK2 and YBF2 series explosion-proof motors, YZS, YZU and YZO series vibrating motors, YCT and YVP series variable-speed motors , YD multi-speed motors, YEJ, YLJ and YCCH series special motors, more than 400 types of products in all. Annual production capacity is 800 thousand KW. Maximum capacity of a single motor is 400KW. All the products conform to National standard and IEC standard.

The company has strong technical power , and quality technical personnel , including engineers and professor. With many years of experiences, the company has strong R and D capability. For recent years, the company has cooperated with some universities and research institutes to improve products and to transform research achievements in to production. The products in our company have been very popular both with abroad and domestic.

The company follows the principle of Dedication, cooperation and honesty. Its policy is Customer and Quality must come first. The company will provide the customers with high quality products, reasonable price, satisfactory delivery and best after-sale services.
