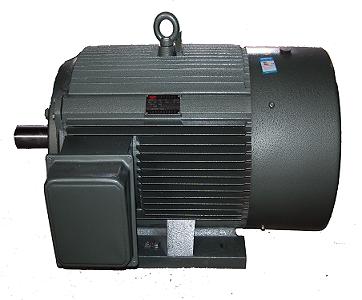

• Y series (IP44) three-phase asynchronous motors (Frame sizes 80 to 355)

Y series (IP44) three-phase asynchronous motors (Frame sizes 80 to 355)

Y series (IP23) rated motor voltage 380V, rated frequency of 50Hz; Motor running location altitude does not exceed 1000m; maximum ambient air temperature changes with the seasons, but not more than 40 ° C; minimum ambient air temperature of -15 ° C; wettest month average maximum relative humidity of 90%, while the monthly average minimum temperature not higher than 25 ° C. Please contact us:yudafu091@yeah.net

Product Details

Quick Details

Description

Y series (IP23) rated motor voltage 380V, rated frequency of 50Hz; Motor running location altitude does not exceed 1000m; maximum ambient air temperature changes with the seasons, but not more than 40 ° C; minimum ambient air temperature of -15 ° C; wettest month average maximum relative humidity of 90%, while the monthly average minimum temperature not higher than 25 ° C.

Y series (IP44) motor according to user requirements derived manufacturing. Such as: the special requirements of the different voltage, frequency, biaxially stretched, wet and dry tropical type motor.

Model descriptions:

For example: Y (IP44) 132S1-2

Y: asynchronous motor

(IP44): International protection class symbol

132: Height (mm) of the center of the base

S1: The first core length of the short base

2: Pole number



Rated voltage: 380V                                                  Rated frequency: 50Hz

Power range:0.55~315 KW                                   Protection class: IP44 and IP54

Insulation class: Class B or Class F                    Cooling method: IC411

Working mode: S1                                                   Pole number: 2,4,6,8,10


Company Profile

  The Shanxi Electric Motor Manufacturing Co., Ltd. (Shanxi motor factory) is the former State Ministry of Machinery Industry key enterprises in the production of small and medium-sized motor, motor has 50 years of manufacturing history, the company covers an area of 116,000 square meters, 800 employees working, which workstechnical staff of 108, with total assets of 218.77 million yuan, the annual production capacity of 100 million kW, the country's largest production base of small and medium-sized wound motor, the provincial "Trustworthy" units.
   The Company has the metalworking, electrical, stamping, assembly, tools, electrical maintenance, high pressure seven production plants, the main production equipment 533 sets. The company has a provincial-level enterprise technical centers and Shanxi Institute of special motor with strong technical innovation ability, national and updating new products Y3, the main research and development unit of the national motor industry YR3 YZR3 other series motor and industry standards the development of one of the units. The company in 1998 passed ISO9001: 1994 quality system certification, and in 2001 completed the ISO9001: 2000 Quality Management System revision replacement work.
      Production of basic series three-phase asynchronous motors, wound rotor three-phase asynchronous motors, crane and metallurgical three-phase asynchronous motors, VVVF three-phase asynchronous motors, 6kV, 10kV medium-sized high voltage three-phase asynchronous motors, varieties, specificationsfull. Of the company's technology center development and production of various special dedicated motor according to user requirements.Company product sales areas of the provinces and cities all over the country and exported to more than 30 countries in Europe and the United States, West Asia, South Africa and other. With a good reputation for quality, with several well-known domestic large enterprises to establish a long-term partnership. In order to further expand business scale, the company purchased 18 million sq m of land for the construction of a new plant, and then, the production will reach 500 million kW.
 Cuijun Lin, chairman, general manager with the staff is willing and all friends sincere cooperation and common development, we will provide a dedicated service.
