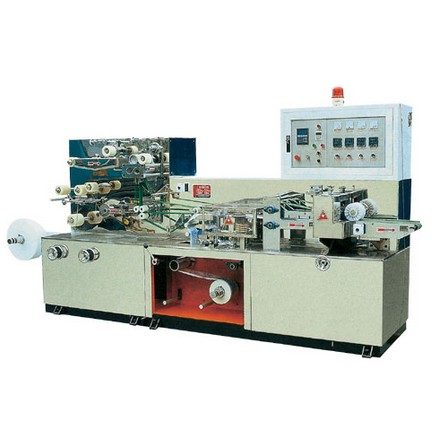

XY-WT -200 Automatic Wet Tissue Making and Packing Machine

XY-WT -200 Automatic Wet Tissue Making and Packing Machine is designed to produce wet towel with air-laid paper, non-woven fabric.

Product Details

Quick Details Parameter

Production speed: : 80~130pcs/min
Power: : 7.0kw(380v 50Hz)
Overall size(LXWXH): : 4.1X1.3X1.9m
Weight: : About 2.0T

Description

Features:
1. This equipment is designed to produce wet towel with air-laid paper, non-woven fabric.
2. The product is packed in small package form of 1-3 pcs each.
3. The machine is equipped with PLC in high automatic, Auto folding cutting, counting and sealing after feeding material.
4.       Packing with difference device, relative adjustment can be conducted without stopping the machine.
5.       Rewinding and molding of products are of step-less speed controller with stable tension and trim molding.
6.       Driving is main regulated by frequency converter, with high driving accuracy of synchronous belt.
7.       Main components parts are of specific material and under anti-rust treatment with lifetime guarantee. The axletree of the whole machine, electric unit and synchronous belt adopt the famous brand of China.。

Technical parameter:
1.       Unfolded size of product:
L: 150~200mm(adjustable) W: 150~160mm(adjustable)
2.Outside packing size:L100~150 mm(adjustable) W60~70mm(adjustable)
3.Production speed:80~130pcs/min
4.Power:7.0kw(380v 50Hz)
5.Overall size:(LXWXH):4.1X1.3X1.9m
6.Weight:About 2.0T

XY-WT -200 Automatic Wet Tissue Making and Packing Machine

Company Profile

Fujian Xinyun Machinery Development Co.,Ltd established in 1998.We have passed ISO9000 Certification for good quality.
Our company can do all the businesses,which including research and creating,manufacture and sales.With these,the company can keep informed on market trends and requests.We supply our customers the whole production line from the low-grade to high -grade ,to meet different customers' demands.
We have been professionally manufacturing baby diaper machine, woman sanitary napkin machine, handkerchief processing machine, napkin paper machine, facial tissue machine, toilet paper machine,paper cup coater machine and so on. We offer reasonable price, best service and best quality for both domestic and overseas customers.

All of our products are certified to meet international quality standards and we can make special machines according to the customer's requirements. Our products are exported to Europe, the Middle East, South America, North America, Asia, Africa and all over the world. We're expecting to work with enterprises from all over the world and we're willing to research cooperative opportunities and trying to build a long-term and stable business relationship.

We sincerely welcome companies worldwide to contact us for the future cooperation.
