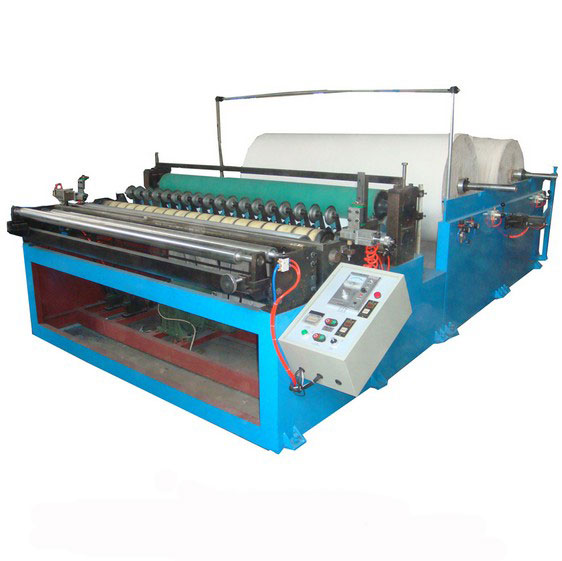

• XY-TQ-G Small Raw Material Slitting Rewinder

XY-TQ-G Small Raw Material Slitting Rewinder

XY-TQ-G Small Raw Material Slitting Rewinder adopts Pneumatic jumbo roll loading, belt driving and web tension control devices, the final rollers are rewinded by air-fill shaft.

Product Details

Quick Details

Description

Function & Parameter:
1. Adopt Pneumatic jumbo roll loading, belt driving and web tension control devices, the final rollers are rewinded by air-fill shaft.
2. With air-fill shaft to rewind the final products, the orientation of core easy and nicety.
3. Adopt steel to steel edge embossing, independent cylinder controlling, easy to additionust, every layer not separate.
4. With Jog button on the front and back for threading paper ,easier and safer.
5. Add tail sealing and embossing function.(need to order)

Main Technical Parameter:

Model
1092
1575
2000
2200
2400
2600
2800
Width of raw material
1330
1750
1950
2150
2350
2550
2750
Dia. of finished product (mm)
Φ901200 the tension can be adjustable
Dia. of raw material (mm)
Φ1100(please point other specification)
Inner dia. of core of raw material
76.2 mm (please point other specification)
Distance of perforation (mm)
90~160mm
Processing of capacity
185205m/min
Reeling
Air shaft
Embossment
Single embossmentdouble embossment steel to steel embossment
Bottom roller of embossment
Felt roller, wool roller, glue roller.
Unwinding stand
1-3 layer please point the number of layers
Calendering unit
steel to steel, steel to glue
Pneumatic system
3 air compressorMin.pressure 5kg/cm2 Pa(prepare by customers)
Power
4.5-11 kw
Overall size (mm) (L×W×H)
6250x2650x18006250x4050x1800 mm
Weight
18504880kg
Option (pay be customer )

Embossing unit
Single embossment, double embossment, steel to steel embossment
Bottom roller of embossment
Felt roller, wool roller , glue roller
Unwinding stand
1-3layer
Edge embossment
Need to order
Calendaring unit
steel to steel, steel to glue
Trimming unit
Vacuum adsorption trimming  1.5KW
Trimming and sealing
Need to order
Driving system
Frequency control

XY-TQ-G Small Raw Material Slitting Rewinder

Company Profile

Fujian Xinyun Machinery Development Co.,Ltd established in 1998.We have passed ISO9000 Certification for good quality.
Our company can do all the businesses,which including research and creating,manufacture and sales.With these,the company can keep informed on market trends and requests.We supply our customers the whole production line from the low-grade to high -grade ,to meet different customers' demands.
We have been professionally manufacturing baby diaper machine, woman sanitary napkin machine, handkerchief processing machine, napkin paper machine, facial tissue machine, toilet paper machine,paper cup coater machine and so on. We offer reasonable price, best service and best quality for both domestic and overseas customers.

All of our products are certified to meet international quality standards and we can make special machines according to the customer's requirements. Our products are exported to Europe, the Middle East, South America, North America, Asia, Africa and all over the world. We're expecting to work with enterprises from all over the world and we're willing to research cooperative opportunities and trying to build a long-term and stable business relationship.

We sincerely welcome companies worldwide to contact us for the future cooperation.
