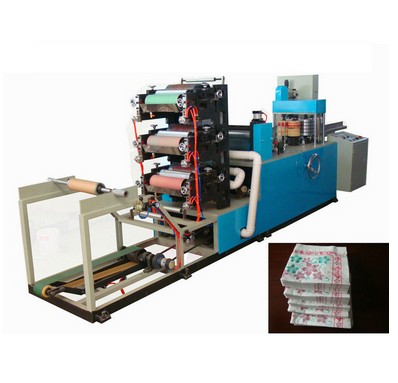

• XY-OQ-7000A Full automatic Multi-colored Napkin Paper Machine

XY-OQ-7000A Full automatic Multi-colored Napkin Paper Machine

XY-OQ-7000A Full automatic Multi-colored Napkin Paper Machine adopts flexible printing unit, high precession ceramic anilox roll, making the water ink equally spread and print out extract and stereo pattern.

Product Details

Quick Details Parameter

Max. diameter of raw material: : 1200mm
Size of finished product: : 180-500x180-500
Diameter of core: : 76mm
Thickness of raw material: : 18-25g/m2
Speed: : 400-600 sheets/min

Description

XY-OQ-7000A(180-500) Full-automatic Multi-colors Napkin Paper Machine

 Main feature:
1.       Adopt flexible printing unit, high precession ceramic anilox roll, making the water ink equally spread and print out extract and stereo pattern.
2.       Raw material through synchronous belt and come into calendaring unit, and into embossing unit. There is tension unit between raw material and calendaring, raw material and embossment.
3.       Folding wheel automatic stop machine protection unit.
4.       Automatic rectify system.
5.       Automatic constant temperature drying system.
6.       Raw material broken protection unit. Automatic speed down unit when raw material run out. Folding roller stop protection unit.
7.       Water ink circulation system.
8.       Full-automatic unreel control system: track the speed of main machine by computer, transmit to servo system, the servo system convey paper to printing system accurately according to the order of computer and make perfect product.

Technical paremater:
1. Width of raw material: as per the size of finished product.
2. Max. diameter of raw material:1200mm
3.Size of finished product: 180-500x180-500
4.Diameter of core: 76mm
5.Thickness of raw material:2-3 layers, 18-25g/m2.
6.Shape of folding:1/4 folding(according to the clients)
7.Way of printing; Flexo printing.
8. Material of printing: water-solubility ink
9.drying system: automatic constant temperature
10. Embossing roller: steel to steel
11.Speed:400-600 sheets/min

XY-OQ-7000A Full automatic Multi-colored Napkin Paper Machine

XY-OQ-7000A Full automatic Multi-colored Napkin Paper Machine

Company Profile

Fujian Xinyun Machinery Development Co.,Ltd established in 1998.We have passed ISO9000 Certification for good quality.
Our company can do all the businesses,which including research and creating,manufacture and sales.With these,the company can keep informed on market trends and requests.We supply our customers the whole production line from the low-grade to high -grade ,to meet different customers' demands.
We have been professionally manufacturing baby diaper machine, woman sanitary napkin machine, handkerchief processing machine, napkin paper machine, facial tissue machine, toilet paper machine,paper cup coater machine and so on. We offer reasonable price, best service and best quality for both domestic and overseas customers.

All of our products are certified to meet international quality standards and we can make special machines according to the customer's requirements. Our products are exported to Europe, the Middle East, South America, North America, Asia, Africa and all over the world. We're expecting to work with enterprises from all over the world and we're willing to research cooperative opportunities and trying to build a long-term and stable business relationship.

We sincerely welcome companies worldwide to contact us for the future cooperation.
