• X6332A ZX6350A Universal milling machine

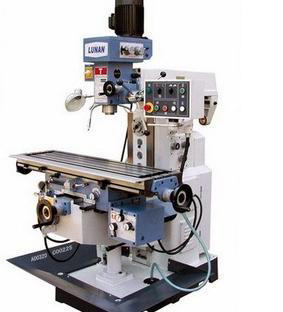

X6332A ZX6350A Universal milling machine

Hardened and ground table surface Automatic feeds on X,Y axis. Motorized lifting and falling of table on Z axis. Please contact:wangxun124@163.com

Product Details

Quick Details

Description

specifications                                                    ZX6350A                          X6332A
Max.drilling dia. 50MM 50MM
Max.end milling width                                                  120MM 120MM
Max.vertical milling dia. 25MM 25MM
Max.tapping dia. M16 M16
Distance between spindle nose and surface of worktable                                                                                100-500MM 100-500MM
Spindle speed range 115-1750(V)40-1300H      115-1750(V)40-1300H
Spindle travel 120MM 120MM

Table size

1250×320MM 1370×320MM
Table travel 600×320×330MM 720×320×350MM
Overall dimension 600×340×2200 1760×1340×2200
Main motor power 1.5V2.2(H) 1.5V2.2 (H)
N.W./G.W. 1500/1600 1650/1750

Company Profile

 Chizhou Household Machine Tool Co., Ltd., established in 1958, locates in Chizhou City of Anhui Province. The former name is Guichi Agriculture Machinery Factory, which owns a long history after several evolutions. Our formerly produced products include diesel engines, walking-tractors, agricultural motors and so on. Since 1986, our company has switched to manufacture household combination machine tools - multi-purpose machines for European and American markets, renamed as Anhui Chizhou Household Machine Tool Co., Ltd.

We are specialized in small size machine tools and CNC machines, and are one of the five important enterprises of small-size machine tools, "Provincial High Technological Enterprise", and "National Export Base of Mechanical and Electrical Products", with direct import and export right. We take the quality as life and we establish a scientific and serious quality guarantee system. Our quality system is ISO9001 certified. We gained CE certificate from TUV in 2007 for all of our products.

There are nearly 400 personnel in our company, including 72 technological developing and research persons. We have a technology research team headed by Mr. Xu Xiangtai who is a nationally famous CNC expert, and a provincial technology center was founded by us, too.

Our company is divided into north and south areas. The total area is 150,000 square meters. The workhouse area is 69,000 square meters. The south area, of 90,045 square meters, is located in Industrial Zone of South Part of Chizhou City with standard workhouses and multi-offices of 36,000 square meters. The south area is the center of decision, production, technology development and research, marketing and management of our company and takes on the assembly work of main parts and precisions parts. The north area, of 59,400 square meters, is beside the south part of Yangtze River with the workhouses of 33,000 square meters, and takes on the work of foundry, spare part manufacture, heat treatment and packing.
