  • X-ray Pipeline Crawler ZY6 Model

X-ray Pipeline Crawler ZY6 Model

pipeline crawler ZY6
pipeline crawler for pipeline inspection
ZY6 model for 13-28 inch pipe
200kv x-ray generator

Product Details

Quick Details

Description

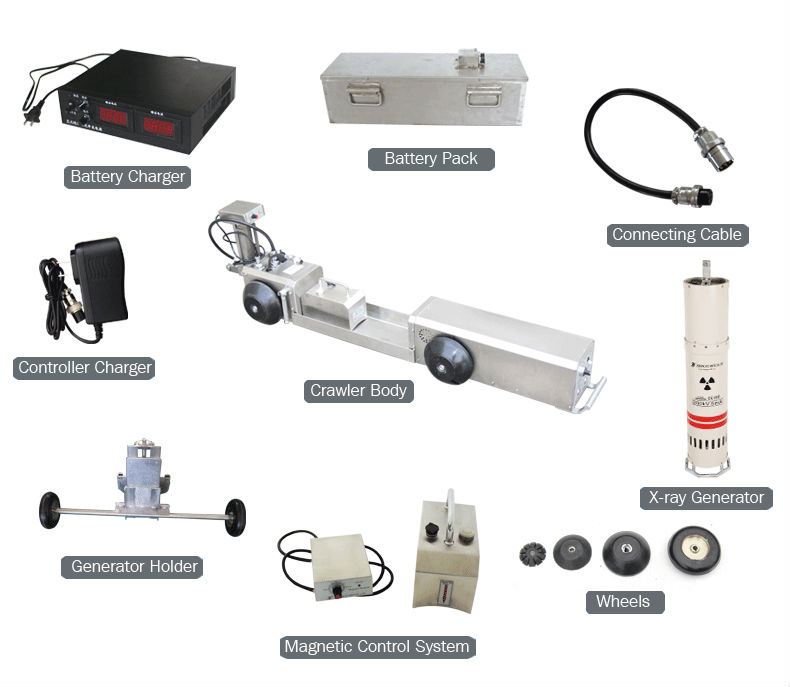

Zhong Yi brand pipeline crawler adopts magnetic control system to make the operation more save and convenient. It includes a crawler boday, a x-ray generator, a battery pack and a group of magnetic control system.


Pipeline Crawlers ZY6 model move steadily inside of the pipe.Its speed is up to 18m/min.Usually a full-charged battery can make the crawler go forward and back for 5km without exposuring.










Crawler



Model:   ZY6                                                                 Locating System:  Magnetic Medium Control

Available Outside Diameter:  12.7"-28"                Crawler Dimensions: 1222x 180x 160mm

                                         (323mm-711mm)

Position Precision: ±3mm                                        Moving Distance: 5km( round trip)

Crawler Weight: 46kg                                                Battery: 7Ah or 12Ah Lead Acid Battery

Battery Weight: 44kg                                                 Max. Climbing Slope: 30°

Turning Radius:≥ 10D                                               Drive Type: Two Or Four Wheels Driven

Full Charge Exposure: 50min                                 Crawling Speed: 18m/min

Suitable X-ray Generator: XXHA-2005







X-ray Generator





X-ray Generator:  XXHA-2005                                  Max.Penetrate: 30mm

Min.Diameter: 323mm                                                Generator Dimension: Φ210mm x 885mm

Generator Weight: 22.6kg                                         Generator Voltage: 200kv

Focus Size: 1.0 x 3.5mm                                           Radiation Angle: 360° x 40°

Exposure Time: 0-5min                                             Anode Target: Cone Target

Operate Temp.: -20°C~+75°C                                   Insulation Material: SF6 Gases

Available Humidity: ≤90%











Company Profile

Located in the Northeast of China, Dandong Zhongyi Electronic Co., Ltd. is an ISO9001:2008 certified organization. We are top 3 professional Chinese manufacturer.Our main products are Industrial Radiology X-ray NDT equipment, including X-ray pipeline crawler,Portable x-ray machine, LED film viewer, and the main spare parts of x-ray generator. With more than 10 years' experience in the field of Industrial X-ray NDT equipment, our company design and develop the machines based on the feedback from our clients.We keep trying to make our machine better and better for your using.

X-ray NDT equipment is widely used in the industries of shipbuilding, mechanical manufacture, aerostatics, railroads, pressure vessels, boiler, petroleum, chemicals and national defense. Our company has a complete set of manufacturing facilities to produce the key parts of X-ray NDT equipment, such as X-ray tubes and HV coils, which ensure the good quality of our equipment. We gather experienced engineers, who are doing their best to provide excellent products and high quality services, to meet the requirements of customers from at home and abroad. Our products have been warmly welcomed by our customers and we have won a good reputation with continuous improvement and innovation.

Persisting in the business concept of "excellent products with honesty and faithful credit" and based on the development strategy of "client foremost", we'll continuously improve our product quality and services to set up "Zhongyi" Brand.
