  • X-ray Pipeline Crawler ZY-4C Model

X-ray Pipeline Crawler ZY-4C Model

pipeline crawler ZY-4C
pipeline crawler for pipeline inspection
ZY-4C model for 8.6-14 inch pipe
100kv,160kv x-ray generator

Product Details

Quick Details

Description

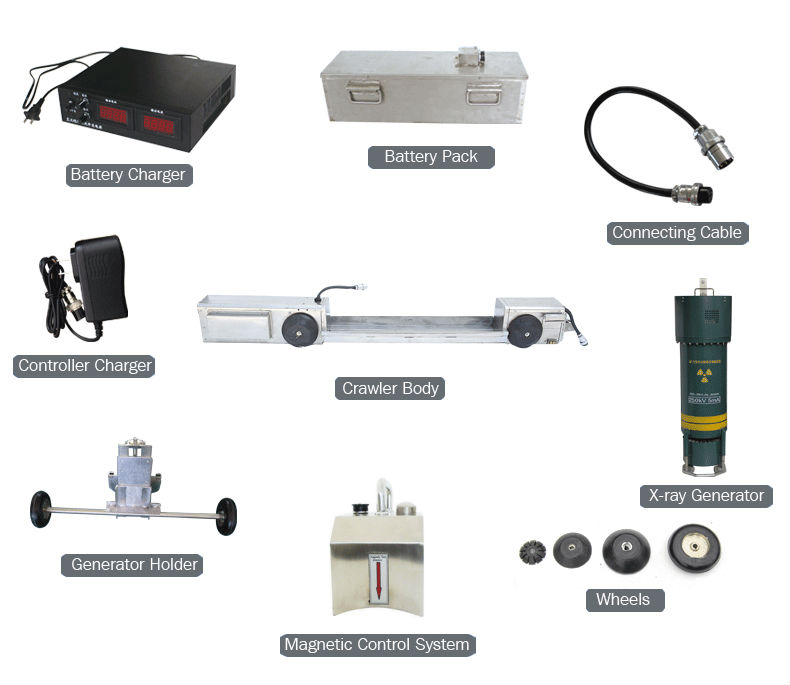

Zhong Yi brand pipeline crawler adopts magnetic control system to make the operation much safer and more convenient. It includes a crawler body, an x-ray generator, a battery pack and a group of magnetic control system.


Pipeline Crawlers ZY-4C model move steadily inside of the pipe.Its speed is up to 18m/min.Usually a full-charged battery can make the crawler go forward and back for 5km without exposuring.









Crawler





Model:   ZY-4C                                                              Locating System:  Magnetic Medium Control



Available Outside Diameter:  8.6"-14"                    Crawler Dimensions: 1490x 170x 150mm



                                    (219mm-355mm)

Position Precision: ±3mm                                         Moving Distance: 5km( round trip)

Crawler Weight: 37kg                                                 Battery: 7Ah Lead Acid Battery

Battery Weight: 28kg                                                  Max. Climbing Slope: 20°

Turning Radius:≥ 10D                                                Drive Type: Two Wheels Driven

Full Charge Exposure: 60min                                  Crawling Speed: 18m/min

Suitable X-ray Generator: XXHA-1005

                                                 XXHA-1605





X-ray Generator



X-ray Generator:  XXHA-1005                                  Max.Penetrate: 10mm

Min.Diameter: 219mm                                                Generator Dimension: Φ170mm x 870mm

Generator Weight: 14kg                                            Generator Voltage: 100kv

Focus Size: 1.0 x 2.5mm                                           Radiation Angle: 360° x 40°

Exposure Time: 0-5min                                             Anode Target: Cone Target

Operate Temp.: -20°C~+75°C                                    Insulation Material: SF6 Gases

Available Humidity: ≤90%







X-ray Generator:  XXHA-1605                                   Max.Penetrate: 15mm

Min.Diameter: 273mm                                                 Generator Dimension: Φ200mm x 900mm

Generator Weight: 18kg                                             Generator Voltage: 60-160kv

Focus Size: 1.0 x 3.5mm                                            Radiation Angle: 360° x 40°

Exposure Time: 0-5min                                              Anode Target: Cone Target

Operate Temp.: -20°C~+75°C                                     Insulation Material: SF6 Gases

Available Humidity: ≤90%



















Company Profile

Located in the Northeast of China, Dandong Zhongyi Electronic Co., Ltd. is an ISO9001:2008 certified organization. We are top 3 professional Chinese manufacturer.Our main products are Industrial Radiology X-ray NDT equipment, including X-ray pipeline crawler,Portable x-ray machine, LED film viewer, and the main spare parts of x-ray generator. With more than 10 years' experience in the field of Industrial X-ray NDT equipment, our company design and develop the machines based on the feedback from our clients.We keep trying to make our machine better and better for your using.

X-ray NDT equipment is widely used in the industries of shipbuilding, mechanical manufacture, aerostatics, railroads, pressure vessels, boiler, petroleum, chemicals and national defense. Our company has a complete set of manufacturing facilities to produce the key parts of X-ray NDT equipment, such as X-ray tubes and HV coils, which ensure the good quality of our equipment. We gather experienced engineers, who are doing their best to provide excellent products and high quality services, to meet the requirements of customers from at home and abroad. Our products have been warmly welcomed by our customers and we have won a good reputation with continuous improvement and innovation.

Persisting in the business concept of "excellent products with honesty and faithful credit" and based on the development strategy of "client foremost", we'll continuously improve our product quality and services to set up "Zhongyi" Brand.
