  • Wood Plastic Panel Production Line

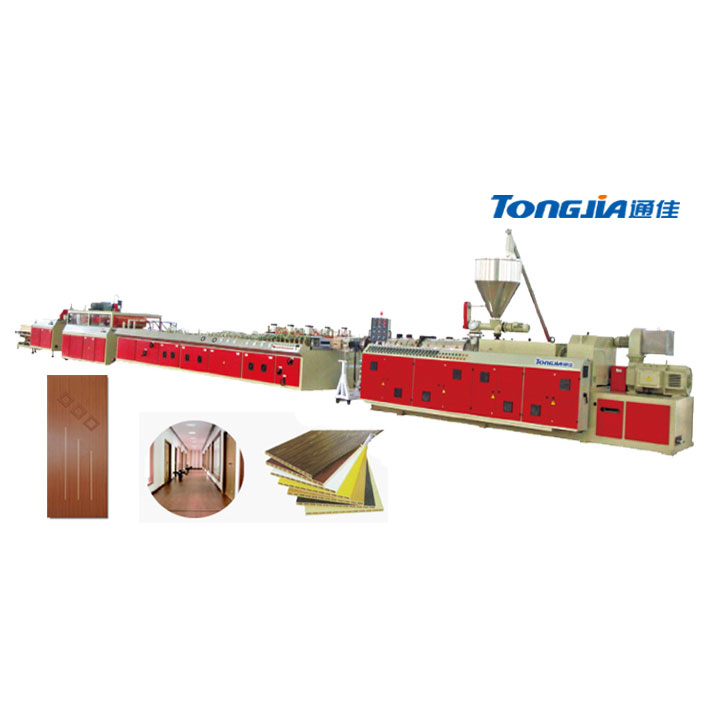

Wood Plastic Panel Production Line

This Wood Plastic Panel Production Line is designed according to international latest technology, mixed PVC, PP, PE, PS with plant fiber symmetrically. It adopts high-efficiency conical double-screw extruder with forcible cooling system to extrude and form. The wood plastic panel out from our line has features of green environment protection, damp proof, antisepticise and not distortion, thus suitable for processing method of wood and can be recycled to reuse. It has been widely used in wide door, partition panel, construction template, base plate of container, furnish panel, etc.

Product Details

Quick Details

Description


This Wood Plastic Panel Production Line is designed according to international latest technology, mixed PVC, PP, PE, PS with plant fiber symmetrically. It adopts high-efficiency conical double-screw extruder with forcible cooling system to extrude and form. The wood plastic panel out from our line has features of green environment protection, damp proof, antisepticise and not distortion, thus suitable for processing method of wood and can be recycled to reuse. It has been widely used in wide door, partition panel, construction template, base plate of container, furnish panel, etc.


The Main Technical Specifications

Model

JG-MSB80/156

JG-MSB92/188

Screw dia

mm

Φ80/156

Φ92/188

Screw quantity

piece

2

2

Rotational speed

r/min

1-38

1-32.9

Main extruder power

KW

55

110

Heating power(approx)

KW

36

45

Extrusion output

kg/h

150-350

300-500



Main Technical Specification of Auxiliary Machine

Model

BF600

BF1000

Max. product size

mm

600

900

Draw-off height

mm

150

150

Draw-off force

kn

50

50

Draw-off speed

m/s

0-3

0-2.5

Auxiliary machine’s total power

kw

35

40

Cooling water consumption

m3/h

9

12

Compressed air pressure

Mpa

0.6

0.6

Company Profile

SHANDONG TONGJIA MACHINERY CO., LTD. locates in Jining City, Shandong Province. It was built in 1953 and has 628 workers now, covered an area of 180,000m2. Annually, our company produces 2000 sets of plastic machines and 10,000T plastic products.

Shandong Tongjia Machinery Co., Ltd. is the Vice-chairman of China Plastics Machinery Industry Association, Director of China Light Industry Machinery Association, the Technological Innovation Enterprise among National Light Industrial and the High-new Technological Enterprise of Shandong Province.

With professional technique and first-class processing machines, Tongjia is always supplying high quality machines with competitive price! Up to now, we have developed over 180 new products of plastic machinery with 9 kinds, all these machines passed CE from Germany TUV company and have been exported to over 50 countries and share over 60% domestic market.

Tongjia Machinery hopes to create nice future with clients from home and overseas!
