• Wet ready-mixed cement batching plant

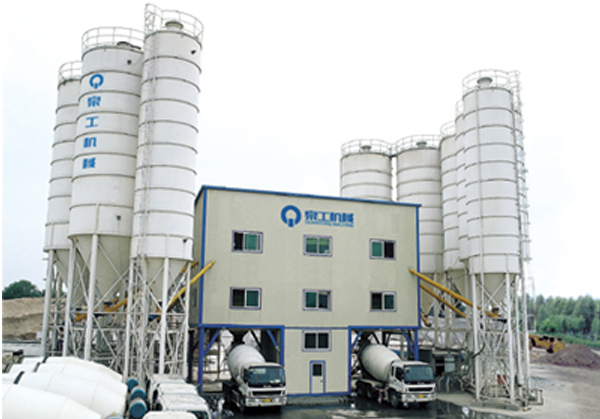

Wet ready-mixed cement batching plant

1. Stability and Durability: adapt and apply the most advanced technologies around the world; 2. Reliability: 30 years of experiences in manufacturing concrete mixing plants; 3. Stationary modular structure, fast and easy installation; 4. Sicoma mixer, excellent mixing performance with high efficiency and high productivity; 5. Double computers with double controls, easy operation; 6. Excellent environmental protection, dust collection system and anti-noise design. haishiqi12@yeah.net

Product Details

Quick Details

Description

HZS Ready-Mixed Concrete Mixing Plant,Concrete Mixing Plant, Concrete Batching Plant

Type

HZS60

HZS90

HZS120

HZS180

HZS240

Theoretical Production

(m3/h)

60

90

120

180

240

Mixer

Type

MAO1500/1000

MAO2250/1500

MAO3000/2000

MAO4500/3000

MAO6000/4000

Power

(KW)

2X22

2X30

2X37

2X55

2X75

 Discharging Capacity

(m3)

1

1.5

2

3

4

 Aggregate Diameter

(mm)

60

80

80

150

150

 Aggregate Bin (m3)

13

13

20

30

40

 Belt Conveying

Capacity (t/h)

300

450

550

650

900

Weighing Accuracy

 Aggregate

(KG)

1200±2%

2000±2%

2200±2%

3000±2%

4200±2%

Cement

(KG)

600±1%

1000±1%

1200±1%

1800±1%

2200±1%

Fly Ash

(KG)

300±1%

400±1%

400±1%

500±1%

800±1%

Water

(KG)

350±1%

500±1%

500±1%

800±1%

1000±1%

Additives

(KG)

30±1%

50±1%

50±1%

80±1%

80±1%

Total Power (KG)

85

115

130

170

220

Discharging Height (M)

≥3.8

≥3.8

≥3.8

≥3.8

≥3.8

Features:

1. Stability and Durability: adapt and apply the most advanced technologies around the world;

2. Reliability: 30 years of experiences in manufacturing concrete mixing plants;

3. Stationary modular structure, fast and easy installation;

4. Sicoma mixer, excellent mixing performance with high efficiency and high productivity;

5. Double computers with double controls, easy operation;

6. Excellent environmental protection, dust collection system and anti-noise design.



Excellent Mixing Performance

1. Horizontal twin-shaft compulsory mixer has the strong mixing ability with uniform mixing and high production output. The admixtures are widely mixed by the shafts, and reach the best proportional ratio of uniform;

2. The mixing shafts adapt anti-binding technology to prevent the cement from binding on the shafts

3. Mixing paddles, arms and blades are made of special high chromium and high manganese alloy materials. The wear resistance of the mixing paddles saves time and cost to replace, and at the same time, improves the machines durability and reliability;

4. The greasing system, which is controlled by central control system, lubricates the greasing points at the fixed position, fixed time and fixed quantity.

5. Decelerating system uses high-speed, synchronized, and closed planetary decelerators. 6. The opening of discharge gate can be adjusted by hydraulic system as per specific requirements.

Company Profile

QGM Quangong Machinery, which is founded in the year 1979, is the leader supplier of concrete machinery and plant, with 30 years experience.
1. 150,000 square meters factory, More than 500 workers, 20 R&D engineers and 60 technicians;
2. Our company fully implements 6S, ERP, ISO9001 Quality Management System and ISO14001 Environment Management System;
3. QGM applies Germany Technologies in our concrete machinery and plant: A. Concrete block and paver making plant; B. Concrete mixing and batching plant; C. AAC block making plant;
4. Our machines, with CE certificate, have independent intellectual property rights, and are granted as Well-Known Trademark of China;
5. QGM has 10 overseas offices and 25 overseas warehouses;
6. Our machines are well distributed and can be found in use in more than 108 countries and areas;
7. With Quality and Service, We Provide the Integrated Solutions for Block Making and Concrete Mixing.
