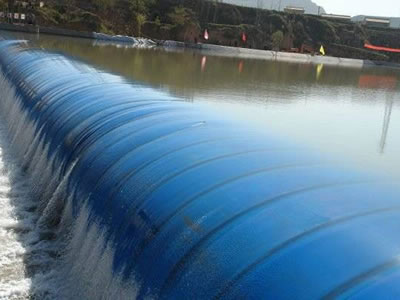

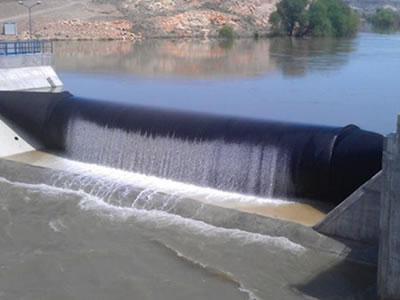

Water inflatable rubber dam is a kind of water-inflated stable tear-shaped rubber dam. Rubber dam consists of civil works, dam bag, anchor, filling drainage facilities and control system. It is made of strength canvas as reinforced framework and rubber layer which ensure tightness of the rubber layers. Compared with air inflatable rubber dam, water inflatable rubber dam is more expensive and slower to fill but more stable to provide optimal control over upstream water levels. It is fixed to concrete to create a permanent dam or floodgate. Water can spill over the top automatically without additional support or adjustment. When the flood is coming, rubber weir can completely collapse, does not have water resistance. It is usually used to retain water, adjust the water level, irrigation, generate hydro-electric power, control flood, etc.
Material structure: one cloth two rubber, two clothes three rubber, three clothes four rubber, etc.
Color: blue, black, red, gray, purple, etc.
Medium in dam: water.
According to installation method:
Double anchor (pillow-like dam and inclined dam).
According to anchored method:
Customization can be available.
It is more expensive, slower to fill, but more stable to control over upstream water level than air inflatable rubber dam.
Tear-shaped rubber dam is on the wide concrete still.
It can withstand overflow 50% in height.
It can operate without electric power.
Outer rubber is thick, is resistant to wear, sunlight, heat, ozone, aging, etc.
Middle layer rubber can protect canvas and connect canvas.
Inner rubber has high airtight and watertight, is resistant to aging of canvas.
Inflating and deflating time of water inflatable rubber dam is longer than air inflatable rubber dam.
Inflating water stably, dam bag is heavy which can decrease vibration.
Water inflatable rubber dam is high volume low pressure system, so high pressure compressors are not needed.
Compared with conventional sluice dam, investment of water inflatable rubber dam reduced by 30-70%, wood saved by over 60%, steel saved by 30-50%, concrete saved by 50%.
It is resistant to shock, rust, foundation deformation, also has good sealing effect, perfect seismic performance, completely collapse capability and no water resistance.
Various colors and beautiful styles can create landscape and beautify the environment.
Inflating or deflating can be controlled by pumps or compressors which are controlled by automatic computer control.
Simple construction and installation on new or existing foundation.
Maintenance cost of water inflatable rubber dam is low.
Construction period is short, only need 3-15 days.
The service life span of water inflatable rubber dam usually is up to 15-25 years.
Adjust the water level.
Generate hydro-electric power.
Develop water entertainment and tourism.
Increase reservoir capacity.
Industrial and agricultural production.
Zaoqiang Dacheng Rubber Co., Ltd. is located in Northern industrial park, Hengshui, Hebei, China. We are one of the leading manufacturers in development, design, manufacturing and marketing of inflatable rubber dams all over the world.
We have several kinds of inflatable rubber dam: air inflatable rubber dam, water inflatable rubber dam, bookend rubber dam,shield type rubber dam and spoiler rubber dam. We also offer automatic control system and various accessories. The material structure could be one cloth two rubber, two clothes three rubber, three clothes four rubber, etc. The color of inflatable rubber dam could be black, blue, red, gray, purple, etc. Medium of inflatable rubber dam is air or water. According to installation method, inflatable rubber dam can be divided into single anchor rubber dam and double anchor rubber dam. Double anchor rubber dam includes pillow-like rubber dam and inclined rubber dam.
Our productions are mainly exported to Australasia, America, Europe, Africa, etc. Our customers usually are engineering contractors. We can send out the products in time, also can provide customers construction guidance. Our products are cost-effective which are popular among customers.
Our products are considered to economical, durable, quality and have gained great acknowledgments from our customers. The productions also have simple structure, perfect seismic performance. When the rubber dam collapses completely, it is no resistant to water. The dam can be resistant to corrosion, weathering, aging, abrasion, sunlight, UV, heat and ozone.
If you are interested in any of our products, you can email us at firstname.lastname@example.org. Look forward to your inquiries and visit.
