  • Walk Behind Vibratory Roller WKR 650

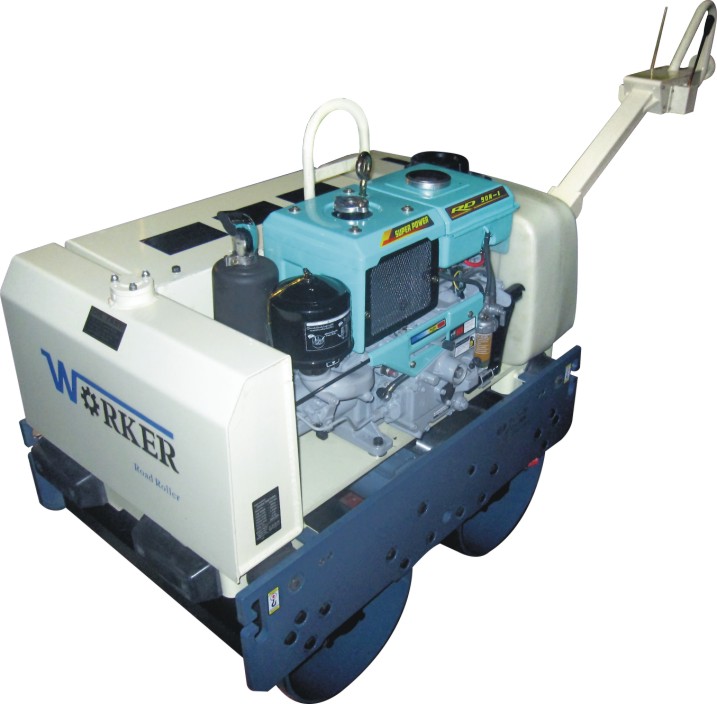

Walk Behind Vibratory Roller WKR 650

Walk Behind Vibratory Roller WKR 650 Custom made watercooled diesel engine,with good heat dissipation and great power comparing to gasoline engine, especially fits for running in burning hot areas.

Product Details

Quick Details

Description

Model No.

WKR650-1

WKR650-2

WKR650-3

Engine Model

Honda GX390

Kipor 186F

RD 90N

Maximum output

8.7kw(11.7HP)

6.3kw(8.5HP)

6.62kw(9HP)

Displacement

0.389 L

0.406 L

0.487 L

Fuel tank capacity

6.1L

5.5 L

5.8 L

Weight

650kg

680kg

710 kg

Travel speed

0-4 km/h

Vbiration frequency

60 Hz

Centrifugal force

12 KN

Compact width

650 mm

Roller diameter

360 mm

Climb ability

0-30 °

Water tank capactity

40 L

Oil tank capacity

25 L


1.Hydraulic drive ,imported hydraulic pump from Japan
2.Handled by joystick,effort saving and smooth opeartion
3.Custom made watercooled diesel engine,with good heat dissipation and great power comparing to gasoline engine, especially fits for running in burning hot areas.
4 Drum and body steel material is C45,better tensile strength than Q235,long service life
5.Steel cutting by lazer,no deformation from twisting and bending,high demension accuracy comparing to flame cutting
6.The rollers can wokr long time with high capacity water tank
7.CE certificaiton

Walk Behind Vibratory Roller WKR 650

Company Profile

Ningbo Worker Construction Machinery Equipment Co., Ltd. has continuously been dedicated to developing and manufacturing small machinery of road construction and maintenance since established in 2010.
Our company has a strong technical background team for developing as well as manufacturing and experienced experts of products and hydraulic systems. Our products are exported to many countries and regions around the world, such as Japan, Korea, the Middle East, etc., with good quality and timely delivery.

Our main products are:
Walk Behind Vibratory Rollers
Plate Compactors
Concrete Cutters
Tamping Rammers
Grinding Machines
etc.

Ningbo Worker is located in Yinzhou of Ningbo, and enjoys very good transportation condition near Beilun Sea Port, only 300 kilometers away from Shanghai.

We are keeping the objective of "technical innovation, constantly improving and sincerity service". Our final pursuit and commitment is to provide high-quality products and first-class services for customers.

We sincerely hope to strengthen the friendship with customers at home and aboard and form long-term business relationships.

Welcome to Ningbo Worker for business visit, investigation and negotiation.
