• WZFQ-A High Speed Paper Slitting and Rewinding Machine

WZFQ-A High Speed Paper Slitting and Rewinding Machine

This machine suitable for slitting jumbo roll materials such as paper,aluminum foil,PVC, Plastic Film,Insulation Materials and Laminated Materials etc.

Product Details

Quick Details

Description



Suitable for:



This machine suitable for slitting jumbo roll materials such as paper,aluminum foil,PVC, Plastic Film,Insulation Materials and Laminated Materials etc.

It is best slitting machine for Jumbo roll material in china. it is good use for paper roll slitting machine

Characteristic:

1.Main engine frequency adjust speed,PLC touch screen control system,auto counter meter, auto machine stop when had alarm , auto tension control etc function.



2.Unwinding unit use auto air loading system(150#cylinder)



3.Rewinding use vector motor control tension,Unwinding use magnetic powder brake control tension



Main Technical Parameters:



Model WZFQ-1100A WZFQ-1300A WZFQ-1600A
Max.Width of Unwinding 1100mm 1300mm 1600mm
Max.Diameter of Unwinding Ø1400mm Ø1400mm Ø1400mm
Min.Slitting Width 30mm 30mm 30mm
Max.Diameter of Rewinding Ø1000mm Ø1000mm Ø1000mm
Machine Speed 350meter per minutes 350 meter per minutes 350 meter per minutes
Slitting Speed 260 meter per minutes 260 meter per minutes 260 meter per minutes
Total Power 30KW 30KW 30KW
Machine Weight 3500KG 3800KG 4500KG
Overal Dimension(L*W*H) 3500*3100*1900mm 3500*3400*1900mm 3500*3700*1900mm


WZFQ-A High Speed Paper Slitting and Rewinding Machine

Company Profile

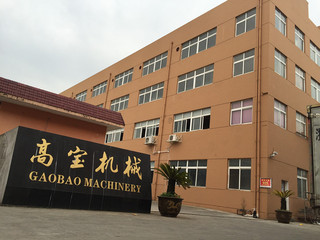

Zhejiang Gaobao machinery Co., LTD is a professional manufacture of paper and plastic flexible packaging equipment joint-stock enterprise. It is located in Wenzhou,Zhejiang, China (No.605, Zhengsong Road, Wanquan Industrial Park, Pingyan Town) with superior geographical location and convenient transportation. We are focus on Slitting machine, Crosscutting machine, A4 paper cutting machine, die-cutting machine and other equipment products. With more than 20 years' hard working, we have developed into a integrated company which combine manufacture, sales and service together.
Now, Gaobao has abundant technical force, perfect processing system and a sound after-sales service. Learning from domestic and foreign advanced technology, we combine with market demand and bring our advantages into play to develop new packing equipment constantly. These are widely used in roll material processing industry, such as paper, aluminum foil, plastic and so forth. Due to the high degree of automation and excellent quality with competitive price, our products sell very well in domestic. For example, the Sun Paper, the Five-Star Paper, Kai Lai Paper, Constant Xin Paper products, Nanjing Jinwei Paper,South sugar Paper and other enterprises, they are our faithful fans. Also, the products have been exported to the America, the Middle East, Africa, Southeast Asia, Europe and other countries and regions.
