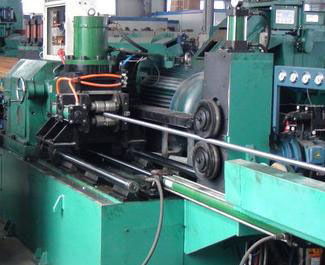

  • WXC80S CNC lathe machine or peeling machine

WXC80S CNC lathe machine or peeling machine

1.Raw material diameter range:21mm- 85mm 2.Raw material lenth: more than 2200mm 3.Automation 4.Finished goods no indentation Please contact:wangxun124@163.com

Product Details

Quick Details

Description

Specification
WXC80S
RAW
   MATERIALS
Diameter Range(mm)
Φ21~Φ85
Raw Material Length(mm)
≥2200
Tensile Strength (M pa)
≤1100
Surface Hardness
≤HB320
Curvature(mm/m)
≤1.50
Diameter Tolerance
According to GB 702-88 second group
Roundness
≤50% of the diameter tolerance
Surface Roughness(Ra)
≤25~50μm
FINISHED
GOODS
Diameter Range
Φ20~Φ80
Unilateral Cutting Depth (mm)
0.35~1.50
Diameter Tolerance
≤IT9 (standard tolerance grade)
Surface Roughness(Ra)
≤3.2μm
Roundness
≤0.03mm
Feeding Cutting Speed(m/min)
1.0-10.0(for continuous chips and high strength and hardness should reduce the speed)
Cutter Head Rotational Speed(rpm)
290~800 (Six Poles) 430~1200(Four Poles)
Main Machine Motor Power(KW)
75
Auxiliary Machine Motor Power(KW)
5.5(feeding part)+0.75(discharging part)
Main Machine Outline Dimensions
(Length*Width*Height) m
3.5m X 3.5m X 2.4m ( for your reference)
Full Set Machine Outline Dimensions
(including auxiliary machine)
(Length*Width*Height) m
15.5m X 5.0m X 2.4m ( for your reference)
Main Machine Weight
(including auxiliary weight) (T)
8.5 (11.5) ( for your reference)
Total Capacity(KW)
95
Compressed Air Source
(user prepare by themselves)
0.5-0.8Mpa,1.8m3/min,0.8m3 gasholder,two-stage oil-water separator and compressed air freezing drier



Company Profile

Haige Machine Tools Co., Ltd. is a manufacturer of straightening machines and centerless turning machines with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Bars of various materials, wire processing and other industries.

Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
