• WD-550A type automatic wrapping shrink packaging machine

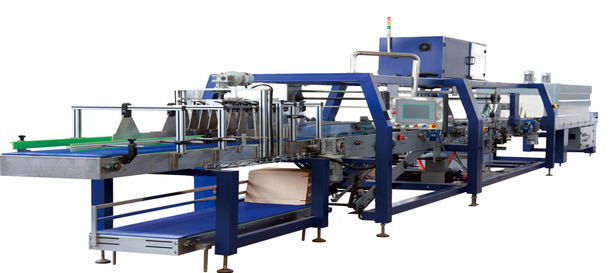

WD-550A type automatic wrapping shrink packaging machine

The aircraft used in the pallet with film packaging,widely used in drinks,beer,chemical,food,pharmaceutical and other industries. The whole pneumatic expansion support film roll,for the film quickly takes about two minutes to change the film. wangyuhua0321@163.com

Product Details

Quick Details

Description

Advantages:



The aircraft used in the pallet with film packaging,widely used in drinks,beer,chemical,food,pharmaceutical and other industries.
The whole pneumatic expansion support film roll,for the film quickly takes about two minutes to change the film.
The film tension transportation,smooth,and precise control of the cutting film neat incision.
Serve control technology can maintain the mechanism of precise synchronization of advanced, reliable delivery.
The heating box, reasonable structure, heat insulation, high precision of temperature control.
Supporting German Siemens, Germany P+F, Japan SMC, Italy motorcycle Rio, the world's most advanced control
System components, equipment, stable operation.
Mechanical transmission components using after heat treatment of stainless steel or carbon steel and other materials; spraying the surface quality,
The antirust performance.

Technical data:

Deice dimensions

13500×1215×2150H mm

max size of packaging

600L×450×350H mm

Shrink film materials

PEPVCPOF

Shirnk film thickness

80~90um

highest yield per minute

The 35-40 package (continuous variable speed)

highest yiled

The heating box (48kW 48kw/220v temperature, heat 24kw)
The mechanical part of the power of 10kw

compressde air pressur

0.4~0.7Mpa; gas; 0.25NM3/min

conveyor belt largest

600mm, height of 1120~1185 (mm) (adjustable)

Voltage requirements

380/220V

Equipment

6500kg



Company Profile

Our company, Zhangjiagang Worita Packaging Machinery Co.,Ltd, which is located in Zhangjiagang, east to Shanghai, west to Nanjing, along to Changjiang River, with convenient transportation.
Our company is a professional manfacturer in producing film shrink wrapping machine, sleeve shrink labeling machine, drinking water production line and other relevent equipment.

In the background of fierce competition in the machinery industry, Worita Machinery has overcome the difficulties and won the recognition of various customers with its sincere devoted spirit, advanced design concept, reliable quality, perfect service and management. Worita Machinery regards "Endeavoring transcendence, Pursuing excellence " as its unremitting pursuit, and "Quality products, Excellence service" as its commitment to its customers.
Sticking to the business tenet of "quality as essence, integrity as credit", our company has recently introduced advanced technology and management methods throughout the world on the basis of extending its existing technology. We produces various equipments such as drinking water processing and packaging production line.
At the same time, we can offer the design, technology and packaging flow projects for free for our customers. Our products are sell well all over the world with its advanced technology, value price, and satisfying service.
