• WD-450A high-speed automatic shrink packaging machine

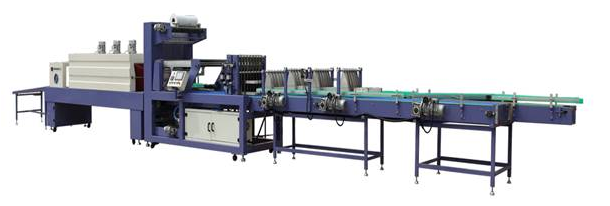

WD-450A high-speed automatic shrink packaging machine

It is specially designed for high speed packing requirement of bottled drinking water (pure water, beverage, juice, milk ect.) It can wrap and shrink two bags at one time, which greatly increase the producing rate. wangyuhua0321@163.com

Product Details

Quick Details

Description

Features:
It is specially designed for high speed packing requirement of bottled drinking water (pure water, beverage, juice, milk ect.)
It can wrap and shrink two bags at one time, which greatly increase the producing rate.

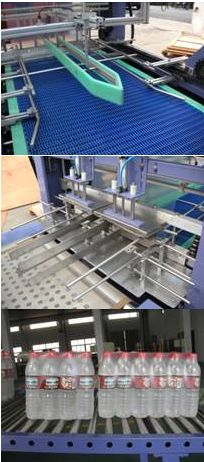

When conveying the bottles, it can arrange and film wrap the bottles automatically, which save the time and improve the working efficiency.
PLC control, automatic work processing.
Constant temperature cutting blaes, which surface sprayed by Teflon, with the advantage of stable sealing.
Touch screen is used to ensure easy operation.
Suit for different bottle size and packaging type without tray packing.
This type of shrink wrappig machine is your best choice for middle capacity, which is easy operation and maintance.
Technical data:


External dimension

L14000*W1200*H2100



Packaing size

Host machine

L3200*W1200*H2100

Shrink tunnel

L4000*W1100*H1840

Conveyor

L4800*W1080*H920 (±100)mm

shrink tunnel passage size

L2400*W680*H450

Packing speed

35-40bags/min

Width of the convey belt

720MM

Sealing and cutting time/ temperature

0.5-1s, 180-260℃

Power supply

380V, 3phase, 30KW

Air pressure

0.6-0.8Mpa

Air consumption

0.6m3/min



Company Profile

Our company, Zhangjiagang Worita Packaging Machinery Co.,Ltd, which is located in Zhangjiagang, east to Shanghai, west to Nanjing, along to Changjiang River, with convenient transportation.
Our company is a professional manfacturer in producing film shrink wrapping machine, sleeve shrink labeling machine, drinking water production line and other relevent equipment.

In the background of fierce competition in the machinery industry, Worita Machinery has overcome the difficulties and won the recognition of various customers with its sincere devoted spirit, advanced design concept, reliable quality, perfect service and management. Worita Machinery regards "Endeavoring transcendence, Pursuing excellence " as its unremitting pursuit, and "Quality products, Excellence service" as its commitment to its customers.
Sticking to the business tenet of "quality as essence, integrity as credit", our company has recently introduced advanced technology and management methods throughout the world on the basis of extending its existing technology. We produces various equipments such as drinking water processing and packaging production line.
At the same time, we can offer the design, technology and packaging flow projects for free for our customers. Our products are sell well all over the world with its advanced technology, value price, and satisfying service.
