• WD-150A full automatic shrink wrapping machine

WD-150A full automatic shrink wrapping machine

Application range: This type of machine is suit for beverage, drinking water, beer, wine and infusion bottle ect. packaging, which can be packed without tray and with a firm and beautiful appearance. wangyuhua0321@163.com

Product Details

Quick Details

Description

Advantages:
Applying imported PLC, which can control the machine automatically, with stable performance, precise control.
With the capacity of feeding and sorting bottles, shrinking and cooling shaping automatically.
inductive switch control the feeding of film, which can control the length of film and reduce the consumption.
Imported tranducer control for the convey motor, which can can realize stepless speed reguation.

Main technical data:

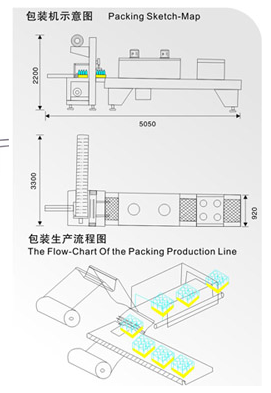

External dimension

L5050*W3300*H2100



Packaing size

Host machine

L1220*W1000*H2250

Shrink tunnel

L3900*W1000*H2100

Weight of the whole machine

1.5t

Size of the shrink tunnel

L3700*W920*H1800

Max. size of the package

L600*W400*H350

Packing speed

8-15bags

Width of the convey belt

920mm (200mm adjustable)

Power supply

380V, 3phase, 20KW

Air pressure

0.6-0.8Mpa

Power

20kw



Company Profile

Our company, Zhangjiagang Worita Packaging Machinery Co.,Ltd, which is located in Zhangjiagang, east to Shanghai, west to Nanjing, along to Changjiang River, with convenient transportation.
Our company is a professional manfacturer in producing film shrink wrapping machine, sleeve shrink labeling machine, drinking water production line and other relevent equipment.

In the background of fierce competition in the machinery industry, Worita Machinery has overcome the difficulties and won the recognition of various customers with its sincere devoted spirit, advanced design concept, reliable quality, perfect service and management. Worita Machinery regards "Endeavoring transcendence, Pursuing excellence " as its unremitting pursuit, and "Quality products, Excellence service" as its commitment to its customers.
Sticking to the business tenet of "quality as essence, integrity as credit", our company has recently introduced advanced technology and management methods throughout the world on the basis of extending its existing technology. We produces various equipments such as drinking water processing and packaging production line.
At the same time, we can offer the design, technology and packaging flow projects for free for our customers. Our products are sell well all over the world with its advanced technology, value price, and satisfying service.
