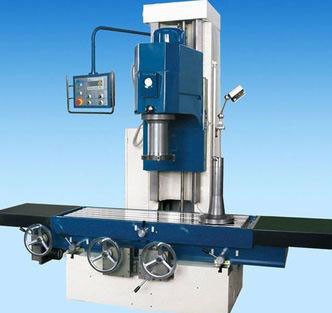

• Vertical Fine Boring-Milling Machine TX170A

Vertical Fine Boring-Milling Machine TX170A

1.Vertical fine boring machine with surface milling machine 2.TX170 wiht max.boring dia170mm 3.TX200 with max.boring dia.200 Please contact:haishiqi12@yeah.net

Product Details

Quick Details

Description

ITEMS



TX170

TX200

TX250

Max. boring diameter

Mm

φ170

φ200

φ250

Max. boring depth

Mm

400

500

500

Max.grinding area

Mm

400x1000

Max.milling area

Mm

400x1000

Max. drilling& reaming diameter

Mm

φ30

Spindle speed

r/min

120-1200

Feeding of the spindle

Mm/min

14-900

Rapid moving speed of the spindle

Mm/mim

900

Spindle travel

Mm

700

Distance between spindle end face and table

Mm

0-700

Distance between spindle axis and carriage vertical plane

Mm

375

Longitudinal feed of worktable

Mm/mim

32-1350

Rapid moving speed of the table longitudinal travel

Mm/mim

1350

Max. longitudinal travel of the working table

Mm

1500

Max. cross travel of  the working table

Mm

200

Worktable size(W*L)

Mm

500*1250

500*1500

500*1500

Dimensional precision of boring hole



H7

Machining precision

Roundness

Mm

0.005

Cylindricity

0.01/300

Milling flatness

0.10

Grinding  flatness

0.08

Surface roughness

Boring

Um

Ra2.5

Milling

Ra3.2

Grinding

Ra0.8

Company Profile

We specialize in the research, manufacture and sale of all kinds of engine repair equipment. Our business scope includes machine tools which can repair engines and auxiliary equipment, such as crankshaft grinding machines, camshaft grinding machines, vertical fine boring machines, cylinder honing machines, valve seat boring machines, cylinder boring machines, con-rod boring machines, cylinder block boring machines, cylinder block boring & milling machines, and other machines. Our products are widely used in repairing auto engines.

AMCO puts users' actual needs in the first place. We can not only make improvement of existing machine to adapt the needs of users, but also design and manufacture new machines according to the requirements of clients.

AMCO has a professional and technical team, who has researched technology and engine repair equipment for ship, automobile, tractor, and generator for many years. Higher precision, more convenience to operate, and customer satisfaction are our goals.
