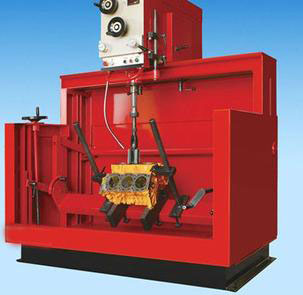

• Vertical Cylinder Honing Machine THM170

Vertical Cylinder Honing Machine THM170

1. Vertical cylinder honing machine; 2. Max. honing dia. 170mm; 3. Max. honing depth 360mm; Please contact:haishiqi12@yeah.net

Product Details

Quick Details

Description

1. Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal and transversal positioning on the workpiece.

2. The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks.

3. Honing spindle with steplessly variable ratation speed visualized on the control panel.



Specification

Unit

THM170

Max. dia. of the hole honed

mm

φ170

Max. depth of the hole honed

mm

360

Spindle speed(stepless)

r.p.m

100-300

Roundness

mm

0.0025

Cylindricity

mm

0.005

Surface roughness



Ra0.2

Table longitudinal travel

mm

1100

Table cross travel

mm

80

Table max. loading

kg

200

Main motor

kw

1.1

Hydraulic station motor

kw

1.5

Coolant pump motor

w

90

Spindle reciprocation speed(stepless)

m/min

0-18

Overall dimensions(LxWxH)

mm

1800x1300x2200

Packing dimensions(LxWxH)

mm

2220x1640x2290

N.W/G.W

kg

1200/1400



Company Profile

We specialize in the research, manufacture and sale of all kinds of engine repair equipment. Our business scope includes machine tools which can repair engines and auxiliary equipment, such as crankshaft grinding machines, camshaft grinding machines, vertical fine boring machines, cylinder honing machines, valve seat boring machines, cylinder boring machines, con-rod boring machines, cylinder block boring machines, cylinder block boring & milling machines, and other machines. Our products are widely used in repairing auto engines.

AMCO puts users' actual needs in the first place. We can not only make improvement of existing machine to adapt the needs of users, but also design and manufacture new machines according to the requirements of clients.

AMCO has a professional and technical team, who has researched technology and engine repair equipment for ship, automobile, tractor, and generator for many years. Higher precision, more convenience to operate, and customer satisfaction are our goals.
