  • Variable aped mini lathe

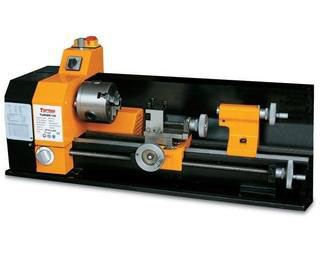

Variable aped mini lathe

1.Max.swing over bed:140mm 2.Distance between center:250mm 3.Max.machine diameter:60mm 4.Spindle speed variable:150-3000rpm Please contact:naijiaxin11@yeah.net

Product Details

Quick Details

Description

1. center rest;2.follo-rest;3.lathe tool 8*8mm ;4.centre core clamper MT1 ;5.ER16spring collet ;
2.ER16spring collet chuck;7.disc chuck 100mm;8.four-jaw chuck;9.face plate ;10.oil gun.
 Technical parameters
Model
Turner140*250
Type
Bench lathe
Control form
Manual work
Max. swing over bed
Φ140mm
Distance between center
250mm
Max. machine diameter
60mm
Spindle bore
Φ11mm
Spindle  taper
MT1
Spindle speed variable
150-3000rpm
Center height
70mm
Lathe body width
70mm
Small planker travel
40mm
Middle planker travel
55mm
Taper of tailstock quill
MT1
Taper of tailstock travel
30mm
Direct feed
0.05~0.1mm
Motor power
230V or 110V/350W
Weight net/ gross
19/22Kg
Package size
450*370*250mm
