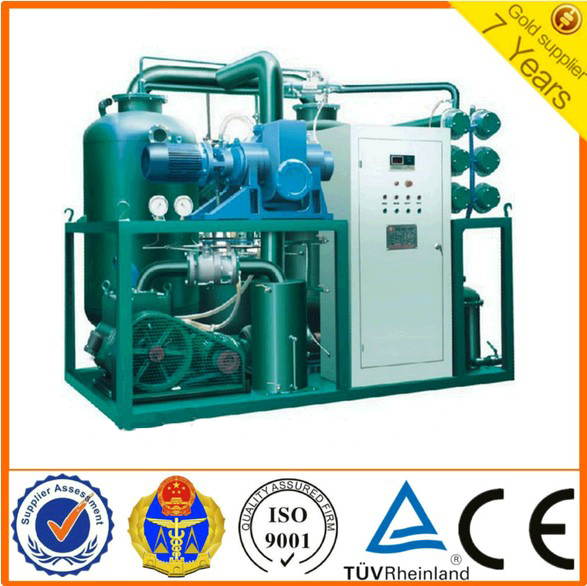

• Vacuum Oil Purifier

Vacuum Oil Purifier

1)Vacuum oil purifier 2)Dehydrating and degassing 3)Precise filtration 4)Double stage 5)ISO9001 &TUV Rheinlad

Product Details

Quick Details Parameter

Condition: : New
Flow: : 500L/MIN
Working Pressure: : Less than 0.5MPA
Place of Origin: : Chongqing, China
Brand Name: : WANMEI
Model Number: : ZLA-500
Usage: : Insulation Oil
Voltage: : 380V
Power(W): : 257000
Dimension(L*W*H): : 320*150*210CM
Weight: : 3960KGS
Certification: : ISO9001
After-sales Service Provided: : Engineers available to service machinery overseas
Certificate: : TUV Rheinland
Brand: : OEM available
Warranty: : one year
Color: : Optional

Description


Vacuum Oil Purifier

Why do we choose oil purifier?

After a period of operation, owing to its exposal to oxygen and mixed with water, copper and iron and other foreign materials and high working temperature acceleration , transformer oil will oxidize and lose its original property and cannot be used effectively again. So Wanmei oil purifiers can efficiently remove water, dirt, gases and other foreign impurities from oil, such as de-electrical oil, turbine oil, lubricating oil, engine oil, hydraulic oil, compression oil, mechanical oil, quenching oil, heat conducting oil, gear oil etc; so as to maintain its lubricating and insulating property, then to reduce components wear, and cut down oil expenses.

Why do you can save 50% costs on oil if use the oil purifier?

Part I. Direct costs saving

1. Costs analysis( all data is based on Chinese price of hydraulic oil, you can change those numbers according to your fact)
1) A company changes all 10 tons in half a year.
Then one year replaced oil 2* 10=20tons.
2) Hydraulic is considered (average) 810USD/ton, oil costs per year
20*810= 16200 USD
3) Selling waste oil(average 130USD/ton)
If no purification, then direct oil costs is
16200-130*20=13600USD

2. Oil purifier costs (per year):
1) One set cost of DYJ-30 is 13000 USD. (Normally it can work 10 years, luxury machine can work more than 15years)
2) Power cost for oil purification (Normally 8 cents/1KW/H)
Flow rate of DYJ-30 is 1800L/H, total power is 39KW
It takes 6 hours to purify 10tons and purification for three times can meet customer’s requirement
Then the power cost per year is 39*6*3*2*0.08=112.32 USD

3. Consumable materials cost
Magnetic filter cartridge: cleanable, no need to change
Precise filter cartridge: A new one per time and one piece is 100USD.
Then one year’s consumable material cost is 200USD.
The purified oil can be used for 3 to 5 years and we say it can be used for 4years average.

4. Human cost. It’s about 17USD per day and two days per year for the whole purification.
Above all, DYJ-30 can save cost for you in 10 years:
13600*10-13000-(112.32+17*2)*10-13600*(10/4)=87536.8USD
Then 87536.8/136000=64.4%
It means that using oil purifier; you can save 64.4% costs on oil in ten years, if your oil quantity is bigger, you can save more.


Part II. Indirect costs saving

If you often purify the oil and keep oil in good condition, it can reduce wear of the machine and extend its service life of and reduce human maintenance cost when the machine works abnormally.

parameter


Vacuum Oil Purifier

Vacuum Oil Purifier


General Description:

ZLA series high-efficiency double-stage vacuum oil purifier is special equipment for dehydration, degassing, purification process of various kinds of low-viscosity insulating oils in electrical transformers and circuit breakers etc.
It can be used for onsite operation in over110KV transformers, especially even in high-latitude areas. ZLA series also can be used as vacuum and drying equipment for a variety of electric facilities. And it is widely used for oil filling for transformers and circuit breakers under vacuum condition. It can be used on-line and onsite without interference of power supply and without supervision.


Advanced separation technique adopted in our machine:

* Magnetic separation technique to remove metallic particulates from oil

* Coalescence separation technique to remove free water from the oil

* Vacuum distillation technique to break emulsion and remove water and light hydro carbon material

* Aerification separation technique to remove air and gases from oil

* Pressure filtration technique to remove solid particulates from oil

* Liquid film fine filtration technique to remove micro impurities from oil

* Absorbing technique to remove acid, alkali and colloidal materials


main parameter


Principle & Diagram

The oil flows first through magnetic filter, heater, electromagnetic valve into the vacuum flash distillation columns for dehydration and degassing treatment, and efficiently remove free and dissolved water, dirt, air, gases and other contaminants from oil. The oil level is auto-controlled by float valve and infrared photoelectric controller in the columns. Then clean oil is led out by oil pump through 2nd filter and fine filter to the outlet. Air and gases are led out by vacuum pump and roots pump, cooled down by air cooling system, water and steam are led out from water drainage, and air to the atmosphere.

guarrantee


Maintenance

A. check and adjust after oil purifier works for a period of time
    1. all the electric control apparatus
    2. temperature controller
    3. oil seals and motor couplings
    4. clean filter elements, check pumps and motors
    5. all the pipes for leaking
B. Clean the motor and change the lubricating grease
C. Check and add specified lubricating oil to vacuum pump,
D. If oil purifier is not in use for one month or more, put it on a dry, flat ground, close all valves and electric cabinet, cove the whole machine with canvas.

The result of purified oil and before.

difference


Our certificates
We have got ISO9001 certificates, certified by  TUV Rheinland  and got 6 patents.


Our office and factory

Our office is Bright and spacious and the factory is clean and tidy, welcome to visit us and have business negotiation here!


Our Products

Wanmei has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of electrical generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, etc.


Our Clients

Wanmei has already cooperated with our domestic and overseas customers since 2001. More and more clients select our oil purifier as their products identification. Hope one day your logo can be put here!


Package & Delivery

Normally, we pack our machine with wooden cases. If you have special requirements, please mention that in advance. The main packing method:
Wooden case with waterproofing felt in side for airplane transportation & ocean transport.

deliver


Return & Feedback
We can provide the main component for each marking machine. You can send back the unqualified spare parts to maintenance or replacement the new spare parts for your marker.

After-sales Services

One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.

Company Profile


wanmei logo

Chongqing Wanmei Electric & Machinery Co., Ltd. and Chongqing Wanmei Oil Purifier Research Institute are high-tech enterprises for research, development and production of oil purification equipment, automatic water purifier, gasifier and other electrical maintenance equipment. The company has unique capability in scientific research and equipment production, with the help of professional scientific experts, specialists and other technicians. Over 70% of the company's staff members are graduates from various colleges.

The company lays much emphasis on high technology research and applications to practical production, gaining a lot of patented technique certificates, know-how certificates, and ISO9001 international certificate. It is granted with independent right for international trade. "Wanmei" trademark has been registered in the People's Republic of China, and "Wanmei" brand has been widely acknowledged in the world market.

Wanmei has assigned to itself the great task of "saving natural resources and protecting biological environment". It has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of electrical generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, and so forth. Wanmei oil purifier is characteristic for its fine filtration, steady operation, energy saving, auto control and easy maintenance, which has won high praises from our customers all over the world.

Wanmei gives its guarantee to all customers both at home and abroad of reliable quality products, reasonable price and good service. We will serve our new and old customers with "Wanmei technology, Wanmei products, Wanmei quality, Wanmei service and Wanmei credit", and open up a brilliant new prospect together with all our customers.

Wanmei Building
