VDL800 Economic CNC Vertical Milling Machining Center 3/4/5 Axis

1.deckel maho 3 axis machining center
2.high-performance oil spindle bearing
3.high strength casting technology

Product Details

Quick Details Parameter

Condition : New
Place of Origin : Liaoning, China
Type : Vertical
Voltage : 380V
Power(W) : can discuss
Certification : CE&ISO9001

Description

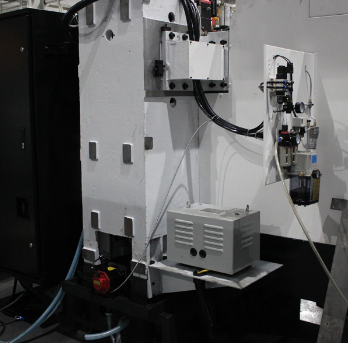

VDL800 Economic CNC Vertical Milling Machining Center 3/4/5 Axis

VDL-800 Features

1. steady structure

 The foundation, column, main spindle box, cross sliding table, worktable and other parts were designed with high strength casting technology. The inner metallographical structure is very steady.

2. high steel nature

 The basic parts have high steel nature by collocating with the reinforcing rib. With the wide foundation, box-shaped cavity column, broaden & lengthening sliding base.

3.High speed and high precision spindle

With transmission of the high torsion tooth form leather belt, the electric machine works no slipping and escapes the emergence of noise and heat.

4. CE safety specification

 According with the CE safety specification, the wirings in the electrical box can control the system without external disturbance.

5.high precision thread pitch

 Designed with compensation, the location of the spindles can be made more accurate and the machine can work out high precision parts by high precision laser admeasuring apparatus.

Parameter

Index name

Unit

VDL500

VDL600A

VDL800

VDL1000

VDL1200

Worktable size

mm

700×320

800×420

900×420

1120×560

1200×620

X/Y/Z travel

mm

450/350/380

600/420/520

800/420/520

1020/560/600

1200/600/675

Distance from main spindle top to worktable face

mm

140-520

150-670

150-670

135-735

100-775

Main spindle max speed

rpm

10000

8000/10000(op)

6000/8000(op)

X/Y/Z  quick travel

m/min

30/30/30

24/24/20

24/24/20

24/24/18 sliding rail

Tool changer capacity (bamboo hat/manipulator type



12/20

16/24

16/24

20/24

/24

Weight

kg

2500

4800

5200

7000

8000

 Machine work environment

Index

Value

three-phase alternating-current supply

380V±10% ,-15%; 50Hz±1Hz

environment temperature

8~40Cº

relative humidity

≤80%

air source pressure

0.5~0.8Mpa



VDL-600 introduction


Company Profile

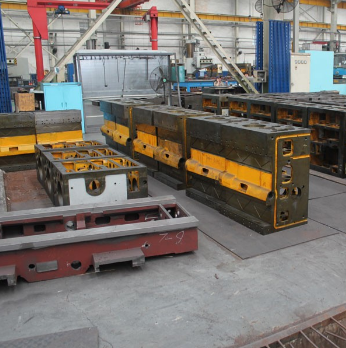

Dalian Dahui Machine Tool Co., Ltd is a lathe machine group in Dalian China, which owned Casting plant, Machine tool plant and Spare parts plant, mainly produce castings, Vertical Lathe, Polishing Machine, Gear Hobbing machine, CNC Lathe, Boring & Milling Machine, Conventional Lathe, Machine Center, CNC Milling Machine, Radial Drilling Machine & special customaries machine, etc.

We cover an area of 30000sqm and has around 300 staff members. All of our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality, stability and accuracy. Our products have been exported to USA, Germany, Albania, Saudi Arabia, Indonesia, Iran, Brazil, Ukraine, Paraguay, Egypt, India, Russia, Bolivia, Mexico, Turkey, South Africa, Thailand and Venezuela and so on.

We have awarded the honors of: Advanced Company, Technology Innovation Company, Dalian Famous-Brand Products. In the meantime, we have obtained the certificates of “ISO and CE”.

We do believe that we can create a win-win situation for both sides. Clients from all over the world are warmly welcome to build business relations, cooperate and develop together with us. We will be always at your service!
