• VCN(R) Vacuum Contactor-Fuses

VCN(R) Vacuum Contactor-Fuses

vacuum contactor- fuses ISO9001-2000 Certificated Very professional factory for vacuum contactor

Product Details

Quick Details Parameter

Place of Origin: : Henan, China
Brand Name: : CHENNUO
Model Number: : VCNR
Electricity Type: : AC
Number of Pole: : 3
Phase: : 3
Main Circuit Rating Voltage: : 220V 110V
Main Circuit Rating Current: : 160A-400A
Rated Range: : 160A-400A
Rated voltage: : 3.6/7.2 KV 12KV

Description

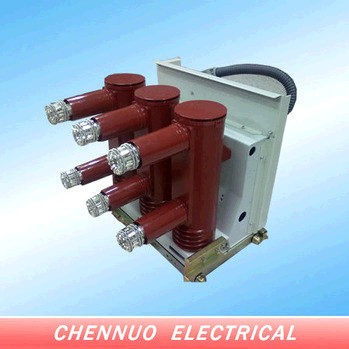

VCN(R) Vacuum Contactor-Fuses

Detail description

VCNR high voltage vacuum contactor- fuse assembler is an indoor equipment of three- phases AC 50-60HZ, rated voltage 3.6-12 KV
This product uses the epoxy resin casting APG process and vacuum arcing chamber solid sealed insulation technology, greatly improving environment adaptability of product , streamline design not only beautiful appearance, mechanical strength and insulating intensity is guaranteed,
the standard handcart type structure, it's convenient for operation
It can be used in the power plant, mine industry and metallurgy industry and to control and protect high-voltage motor of 4000KW as well as transformer of 1600 KVA. It owns two types: machine contact and electric contact. It is equipped with handcart and matching fuse mach with
 high-voltage cabinet. It has many advantages, such as rational structure, high reliability, long endurance, and little of maintenance and is an ideal product for handcart type contactor


Main Tech-Parameter

VCNR Handcart type high voltage vacuum contactor- fuses assembler
Main   circuit rated voltage                                   KV
3.6
7.2
12
1 Min Power-frequency withstand voltage               KV
20
32
42
Lightning impulse withstand voltage                         KV
46
60
75
Main circuit rated current                                                               A
400
315
160
Rated short-time withstand current (4s)                   KA
4
Rated pack withstand current                                                              KA
10
Expected short open circuit current                                                              KA
50
Expected short circuit close current                                                              KA
130
Main circuit electric resistance                                                          μΩ
≤250+Rfuse
Maximum AC Current                                 A
4000
4000
4000
   Operating mechanism Tech Parameter


Auxiliary agent control circuit rated voltage                 V
110V/220 AC/DC

Switch on shunt                                                                   A
10(220VAC/DC)20(110V AC/DC)
Tripping current                                                                 A
0.2(220V AC/DC)0.4(110V AC/DC)
Holding current                                                    A
0.1(220V AC/DC)0.2(110V AC/DC)


VCN(R) Vacuum Contactor-Fuses

VCN(R) Vacuum Contactor-Fuses

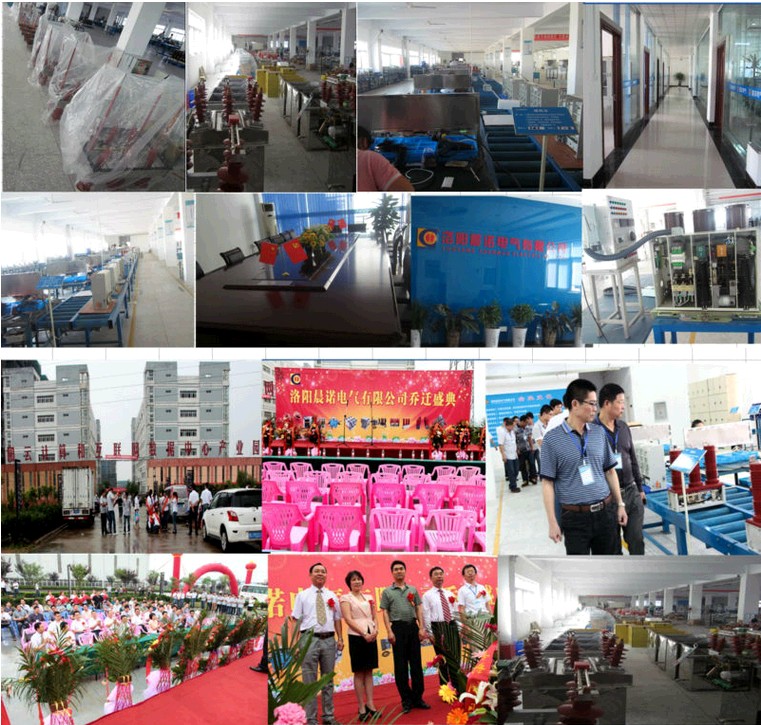

Factory views

factory and workshop

Company Profile


logo

Chennuo Electric is a high-tech enterprise, establised in 2004 ,specialized in manufacturing high & low voltage vacuum electric appliance, which merges research and development, production and sales into a single whole. The main products include high & low voltage vacuum contactors, outdoor & indoor high voltage vacuum circuit breakers, high voltage vacuum load switch, hoist sets of electronically controlled equipment, automatic reactive compensation devices, wind and solar energy-saving devices and other products, widely used in coal, electricity, mining, cement, and chemical industry. All these products are deeply trusted by the customer!

In order to ensure that the product quality is stable, the user use it safely,all of our vacuum contactos have had 1000 times institutions running test before leaving our factory.

We accept OEM and small trial orders. Contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.
