  • VC(H) Sand Maker

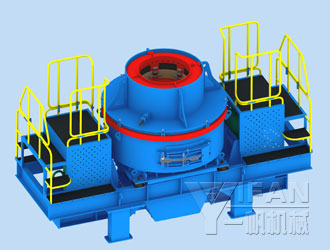

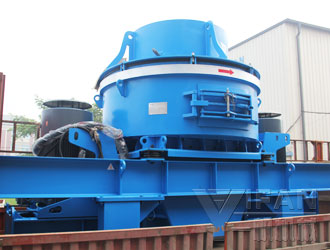

VC(H) Sand Maker

1. Higher crushing efficiency, has the function of fine crushing and rough grinding; 2. Increased rotor speed and higher crushing ratio, deep cavity rotor for larger capacity; 3. Simple structure and convenient installation and maintenance, low operation cost; 4. Optimized structure and energy-saving, more environmental protection; 5. Thin oil lubrication, various of protection measures to decrease fault, high degree of automation and long service life; 6. Good shape of final product,cubic shape, small fraction of elongated flake, suitable for aggregate shaping, manufactured sand. naijiaxin11@yeah.net

Product Details

Quick Details

Description

1. Higher crushing efficiency, has the function of fine crushing and rough grinding;
2. Increased rotor speed and higher crushing ratio, deep cavity rotor for larger capacity;
3. Simple structure and convenient installation and maintenance, low operation cost;
4. Optimized structure and energy-saving, more environmental protection;
5. Thin oil lubrication, various of protection measures to decrease fault, high degree of automation and long service life;
6. Good shape of final product,cubic shape, small fraction of elongated flake, suitable for aggregate shaping, manufactured sand.
VC(H) Series Sand Maker Technical Data:





Model

Speed of Rotor(r/min)

Max Feed Size(mm)

Capacityt/h

Motor Powerkw

Dimensionsmm

Weight(Excluding Motor)(kg)

VC726L

1881-2499

35

60-102

102-176

110

3600*1969*2200

5500

VC726M

70-126

120-211

132

VC726H

96-150

163-255

160

VC730L

1630-2166

40

109-153

185-260

180

4600*2150*2480

8500

VC730M

135-200

229-340

220

VC730H

160-243

272-410

264

VC733L

1455-1934

55

200-260

340-442

320

5500*2563*3178

12800

VC733M

240-320

408-540

400

VC733H

262-352

445-588

440

VC743L

1132-1504

60

252-348

428-580

440

5850*2740*3031

15000

VC743M

280-390

480-660

500

VC743H

315-420

530-710

560


VCU(H) Series Sand Maker Technical Data:





Model

Speed of Rotor(r/min)

Max Feed Size(mm)

Capacityt/h)

Motor Powerkw

Dimensionsmm

Weight(Excluding Motor)(kg)

VCU726L

1881-2499

55

86-143

122-211

110

3600*1969*2200

5400

VCU726M

98-176

146-253

132

VCU726H

132-210

195-300

160

VCU730L

1630-2166

65

150-212

222-310

180

4600*2150*2482

8300

VCU730M

186-280

275-408

220

VCU730H

220-340

326-480

264

VCU733L

1455-1934

80

280-362

408-530

320

5500*2563*3178

12600

VCU733M

336-448

480-628

400

VCU733H

360-490

520-700

440

VCU743L

1132-1504

100
