• Ultrasonic Sleeve Sewing Machine

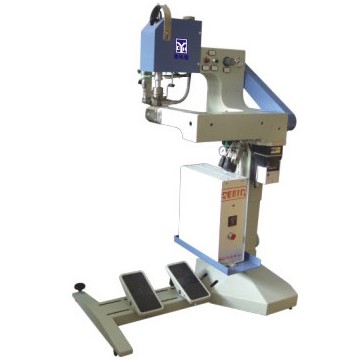

Ultrasonic Sleeve Sewing Machine

Ultrasonic Sleeve Sewing Machine is applied to the non-pin seam of chemical fiber fabrics, non-woven fabrics, thermo-melt fabrics, taking the place of sewing or down-press type welding, limitless continuous welding function, with solid weld, beautiful and high work efficiency.

Product Details

Quick Details Parameter

working power: : 220±5V 50Hz 10A
maximum power: : 1500w
Output power : : 20KHz
running speed: : 0-10m/min
effective width: : 0-12mm
environmental temperature: : -10℃-28℃
machine weight: : 120KG
Overall dimensions: : 800mm×800mm ×1500mm

Description

Basic components:
1 、new type PC intellectual ultrasonic generator
2 、built-upper ultrasonic transducer
3 、pneumatic welding head lifting system
4 、rolling mould adjusting structure and arranging system
5 、special framework design with multi practical functions.
6 、Speed modulating system with single circuit motor

Characteristics:
1 、Applied to the non-pin seam of chemical fiber fabrics, non-woven fabrics, thermo-melt fabrics, taking the place of sewing or down-press type welding, limitless continuous welding function, with solid weld, beautiful and high work efficiency.
2 、Multi-functional framework system with the application of straight line seam, turn seam and cylinder joining.

Ultrasonic Sleeve Sewing Machine

Company Profile

Changzhou Athena Electronics Co., Ltd.  has been engaged in the development and research of ultrasonic fabric welding machines and multifunctional fabric pleating machines for many years. Our management tenet is "Science First and Customers Superior".

Among them, our ultrasonic lace machines and multifunctional fabric pleating machines are popular with many customers for a wide application range and strong product features. They are widely used in many fields of napkins, tablecloth, window curtains, bed covers, ladies' skirts, art ornaments, hair decoration clips and clothes auxiliary materials, owing to special functions.

We have abundant ultrasonic lace cutting machines and garment fabric/cloth pleating machines on hand. Other special equipment can also be manufactured in accordance with special demands from our customers.

In addition, we carry on the business of fabric pleating, lace processing and pattern punching for collars, garments and auxiliary materials.

Our company manufactures sophisticated production equipment with good performance for our customers both at home and abroad. We have strong product research & developing capability and complete quality monitoring systems.

Our products are sold to such countries and regions as Hong Kong, Singapore, Indonesia, Japan, Italy, Vietnam, Russia, South Africa, Turkey, Taiwan area, France, Iran and India, enjoying a good popularity with our customers.

Our Managing Principle:  "Use Sincerity & Deal with Concrete Matters Relating to Work, Taking Markets as Our Guide and Paying Attention to Quality" .

Our Striving Target: Creative & Developing, Exceed Ceaselessly .
