Transformer oil pumps

BZ the axis flows the type transformer oil pump mainly uses in the large-scale power transformer, the electric locomotive as well as other special-purpose transformer forces transformer oil circulates cools system. Also serviceable to heat transfer conductance transformer cools system, when the oil pump revolves, enhancement cooling capacity, when the oil pump stops the movement concurrently does the pipeline, does not affect the heat transfer conductance oil stream flow.Email: yuyang@mec.com.cn

Product Details

Quick Details

Description

Email: yuyang@mec.com.cn

Product overview
BZ the axis flows the type transformer oil pump mainly uses in the large-scale power transformer, the electric locomotive as well as other special-purpose transformer forces transformer oil circulates cools system. Also serviceable to heat transfer conductance transformer cools system, when the oil pump revolves, enhancement cooling capacity, when the oil pump stops the movement concurrently does the pipeline, does not affect the heat transfer conductance oil stream flow.

Service condition
Elevation highly: does not surpass 1000 meters
Transportation liquid: Transformer oil
Ambient temperature :-25°C-+40°C
The transformer oil population oil temperature is highest 95°C lowly is higher than the transformer oil solidification point 5°C
The power source is the three-phase alternating current, nominal voltage 380V, nominal frequency 50HZ
The work way is the S1 work system continuous moves

Performance parameter list


Model

Lift(m)

Flow(m³/h)

Speedr/min

PowerKw

VoltageV

CurrentA

FrequencyHz

4BZ65-1.8/1.5

1.8

65

1450

1.5

380

3.2

50

4BZ65-2.5/2

2.5

65

1450

2

380

4.4

50

4BZ100-2.5/3

2.5

100

1450

3

380

6.7

50

4BZ162-3/4.5

3

162

1450

4.5

380

9

50

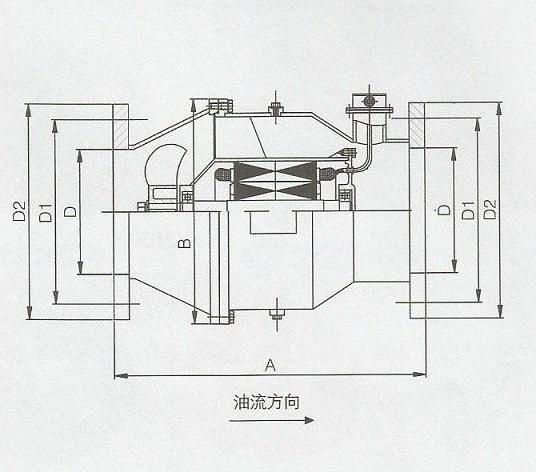

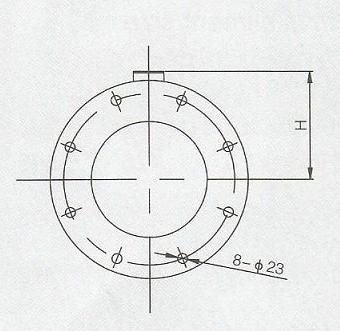

Outlook installment size

Model

A

B

H

D

D1

D2

WT(kg)

4BZ65-1.8/1.5

425

305

230

150

240

285

37

4BZ65-2.5/2

425

305

240

150

240

285

41

4BZ100-2.5/3

500

360

263

200

295

345

65

4BZ162-3/4.5

500

360

263

200

295

345

65
