  • Top-Installation Magnetic Float Level Gauge

Top-Installation Magnetic Float Level Gauge

MTUHZ-55 series top-installation magnetic float level gauge is used for liquid level overground indicator of medium contained in the underground shafts, boxes and vessels. Liquid level indicator of level gauge is completely isolated from the steam. Therefore, it has characteristics of safe and reliability. Besides the liquid level indicator is clear, easy to observe, and be able to provide convenience for liquid level test of flammable, explosive, toxic and corrosive medium.  julin@mec.com.cn

Product Details

Quick Details

Description


Overview:
MTUHZ-55 series top-installation magnetic float level gauge is used for liquid level overground indicator of medium contained in the underground shafts, boxes and vessels.  Liquid level indicator of level gauge is completely isolated from the steam. Therefore, it has characteristics of safe and reliability. Besides the liquid level indicator is clear, easy to observe, and be able to provide convenience for liquid level test of flammable, explosive, toxic and corrosive medium. The liquid level indicator is tracking double-color turning column, and its measurement results can be transmitted far through circuit to reach the purpose of remote control and monitoring.

Technical Parameter
Measurement Range: 300-3000mm
Accuracy: ≤±10mm
Medium Gravity: ≥0.68g/cm3
Working Temperature:-80-400℃
Working Pressure: 0≤ 4.0Mpa
Medium Viscosity: ≤0.1Pa.S
Flange Dimension: made by requirements
Transmitting Output Signal:4-20mADC(two-wire system)  Loaded Resistance: ≤500Ω
Power Supply: 24V DC±10%
Explosion-proof:  Ex dllCT6, Ex iallCT4-6
Note: Any special requirements can be mentioned when ordering

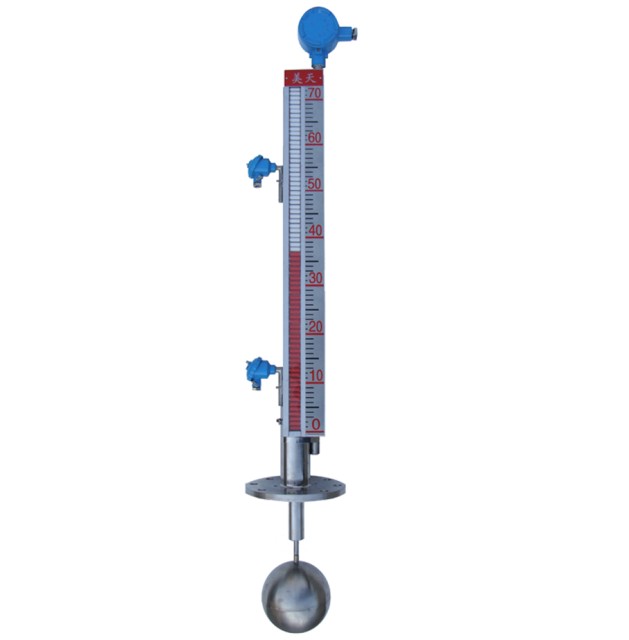

MTUHZ-55 Series Top-Installation Magnetic Float Level Gauge

Company Profile

 Dalian Metern Measurement and Control System Co., Ltd is a subsidiary of Metern Group, located in a beautiful coastal city-Dalian. Our company is specializing in the production of CMF (mass flow meter), magnetic float level meter and other related products. The registered capital is 50 million RMB. The company covers an area of 20000 sq.m. and the building area of 30000 sq.m.

Our company insists on the concept of Integrity, Innovation, Cooperation, Development, and adheres to quality first and the supremacy of credibility policy, and strives to meet customer requirements.

Our company believes in honesty, science and technology principle. The products are widely used in petroleum, chemical, iron and steel, steam turbine, boiler, electricity, environmental protection, pharmacy and other fields. Besides, our company is designated as the instrument supplier by many enterprises. We will devote all energies to the development of national industry.
