• Three Layer Plastics Coextrusion down Blowing Lamination Film Line(Take-off Winding-up Rotating)

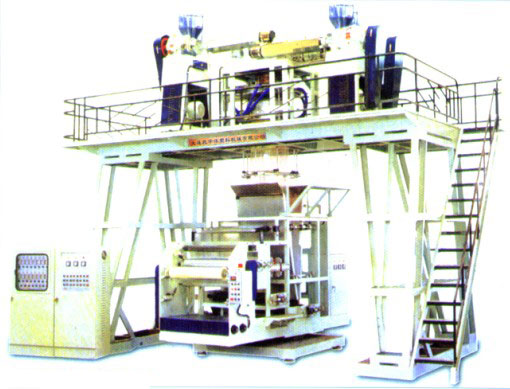

Three Layer Plastics Coextrusion down Blowing Lamination Film Line(Take-off Winding-up Rotating)

This line can be used for producing three layer coextrusion down blowing lamination PP, PE film, the film bright, transparent, straight, used for packaging high-grade costume, handicraft article, photograph album, gift.

Product Details

Quick Details Parameter

Screw diameter: : ∮50mm
Screw L/D ratio: : 28:1
Screw speed: : 20-70r/min
Main motor power: : 45kw
Extrusion output single: : 40kg/h
Lip size: : ∮380mm
Electric total capacity: : 88mm
Max. fold width of film: : 1050mm
Film thickness: : 0.02-0.08mm
Overall dimensions: : 7.25*4.4*5.5mm
Weight: : 9.5t

Description

Application:
This line can be used for producing three layer coextrusion down blowing lamination PP, PE film, the film bright, transparent, straight, used for packaging high-grade costume, handicraft article, photograph album, gift.

Features:
1.    Die-head is layer type spiral mandrel.
2.    Rapid screen changer design is rational, convenient, reliable, safe in operation.
3.    Take off, winding-up rotating can improve the quality of the film roll.

Three Layer Plastics Coextrusion down Blowing Lamination Film Line
