Screw diameter: : ∮50mm
Screw L/D ratio: : 30:1
Screw speed: : 130r/min
Main motor power: : 22*2kw 30*1kw
Extrusion output single: : 70kg/h
Lip size: : ∮300mm
Electric total capacity: : 135-152kw
Max. fold width of film: : 1350mm
Overall dimensions: : 8.5*4.8*8.8m
Weight: : 14.6t

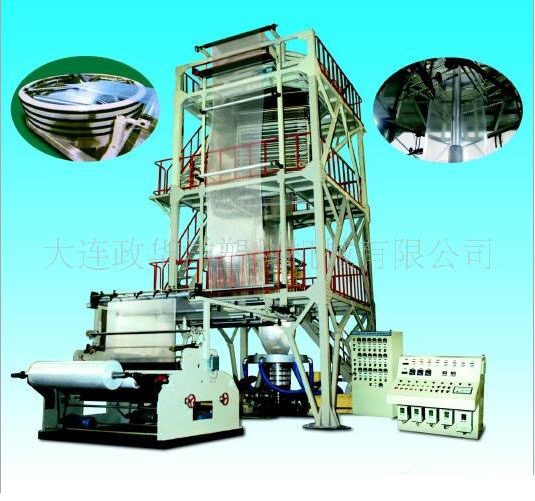

Up-take-off rotating line is optimum designed on the grounds of preference of analogous lines in foreign.
The line can blow film different in gold width continuously. 0.03-0.20mm in thickness packaging film, from LDPE, HDPE, LLDPE, MLLDPE by horizontal extrusion up blown.
The film has good insulation, well for holding temperature, preventing goods from humid, breezing, rain, frost, oxygen and oil. It can be used for light and heavy-duty packaging, for example, fresh fruits, meat-feeding, salt vegetables, fresh milk, drink, rubber tire insolate film, conductive film and antistatic film.
1. Rotating unit is a horizontal design in drum horizontal differential action rotates, reciprocating motion at ±360°stability good.
2. Rugged construction. Tower is constructed of heavy-duty structural steel list that assures stable and reliable performance.
3. Good controllable air current hole and axial distributive along air mat roll, with the result that film floating.
4. Allocate D.C photo automatic corrector system. Therefore film is in alignment.
5. Rapid screen changer design is rational, convenient, reliable, safe in operation.
6. Various functional parts have been installed, such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller and scrap collecting device.
7. PLC control auto or meni-auto winding-up.
8. IBC system is useful for improving transparency and output of film, also eliminate odd smell in bubble.
