  • Thermal-vacuum test chamber

Thermal-vacuum test chamber

Remote monitoring computer and software, printer, interface RS485, recorder, printer

Product Details

Quick Details

Description

Model

HD-JTSP710

Internal dimensions cm

Φ80*120

External dimensions(D*W*H)cm

295*140*205 (the bulge is excluded)

Performance



Temperature range

-70…+125 (С8)

Ultimate vacuum

5*10-5 Pa (without load, atmospheric temperature)

Temp fluctuation

≤0.5(on the cooling wall)

Temp deviation

±3.0(on the cooling wall)

Heating time

-65…+85≤60 min.( heat sink)

Cooling time

+85…-65≤60 min.( heat sink)

Suction time

≤120 min.(from turning on the main valve to reach the working vacuum)

Working vacuum

≤4*10-5 Pa

Heating mode

Radiation heat/oil heating

Refrigeration mode

Mechanical compression, two-stage refrigeration

Compressor

Imported semi-enclosed compressor

Vacuum pump

rotary pump, Roots Pump, molecular pump

Observation window(mm)

Φ200

Temperature sensor

Pt100

Pressure sensor

composite vacuoscope

Controller

Touch screen, parameter and program control

Power supply

АС380V, 50Hz, Three-phase four-wire + earth wire

Power (kW)

12

Safety devices

Overtemp protector, overpressure/ overload/ broken circuit protection of compressor, overload protection of blower, oil pressure protection, water shortage protection phase sequence protection, earth leakage protection, alarm at the time of vacuum pump breakdown

Standard parts

Testing hole (80mm)1 pc., time accumulator, lamp 1pc, shelf,  cudgel(2 sets)

Optional parts

Remote monitoring computer and software, printer, interface RS485, recorder, printer

Note: the specifications above are measured without load at ambient temperature of 25℃.

Refrigeration method: liquid nitrogen, temperature range: -170...+125℃.


Thermal-vacuum test chamber



Company Profile

Xi'an Hyde Science and Technology Limited mainly engaged in affordable high scientific measuring instruments and equipments, offers a full range of standard and custom-designed environmental chambers, providing our customers with solutions to meet their most demanding environmental testing requirements.

Our main products are temperature-humidity chambers, thermal shocking test chambers, vacuum test chambers, temperature-humidity-vibration test chambers, rain/spray test chambers, walk-in test chambers, etc.

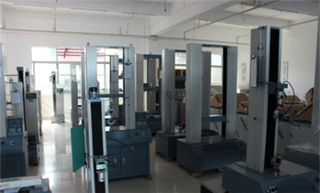

Except environmental testing chambers, our company provides tensile machines, vibration testing systems and other testing equipment. Over the years of development, we have gained the customers favor and trust with our fast response, satisfactory service and good quality.

Besides, our company branch is also engaged in mold design and manufacturing. Adopting advanced technology CAD/CAM/CAE, our molds are produced in large and medium-sized CNC machining centers and by various kinds of advanced numerical control sparks machines. Our products includes automobile and motorcycle series, aerodynamic components, electrical series, lighting accessories and so on, which have the typical features, such as reasonable structure, high durability, good formability, high precision and long operating life.

We attached great importance to the internal quality management, technical innovation and improvement of the production level. Strictly according with ISO9001 international quality management standards, we are trying best to meet various technical requirements of customers. So far, our products have been exported to the USA, Germany, Italy, Great Britain, Russia, Finland, and other countries and regions, and received positive comments from customers.
