  • TOPS STC Alternative Energy Generator

TOPS STC Alternative Energy Generator

1.Two year warranty 2.Free spare parts 3.100% Copper Wire F class 4.ISO,CE,SGS,CQC,SASO,SONCAP,FACTORY AUSO

Product Details

Quick Details Parameter

Place of Origin: : Fujian
China : Brand Name:
LANDTOP : Model Number:
STC : Output Type:
AC Three Phase : Speed:
1500r.p.m : 1500rpm at 50hz
1800rpm at 60hz : Frequency:
50Hz : Rated Power:
3kw- 75kw : Rated Voltage:
400v : Rated Current:
5.4-90.2 : Warranty:
1 Year : Certificate:
CE : ISO
SGS : SONCAP
Winding: : Copper wire
Housing: : Cast iron
Pole: : 4 poles
Power range: : 3kw to 75kw
Color: : As requst
Function: : Alternators for generators
Application: : Standby power for variety of application

Description

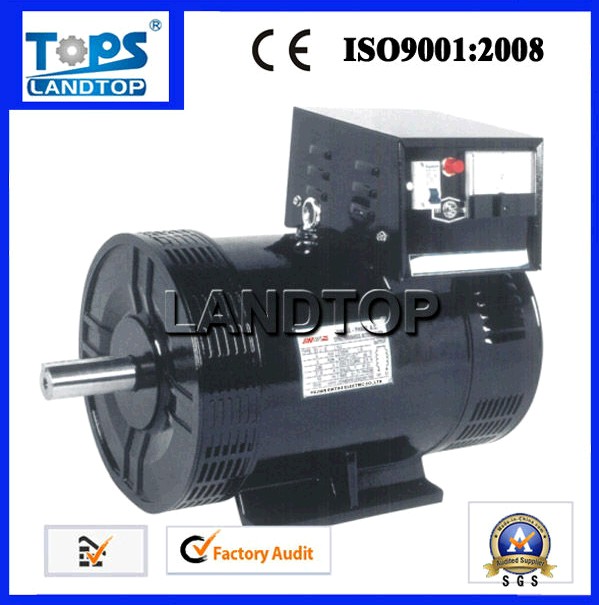

TOPS STC Alternative Energy Generator

STC  Series Three Phase A.C. Synchronous Generator / Alternator

This series generators are to be used in town, countryside, worksites, mountain and pasture as electric power source for lighting purpose, it can also he used as reserved power source for emergent case using.
The generators are of dripproof with rotary field type and adopt harmonic excitation system, easy operation and maintenance.
The generators are three-phase, four-wire type, adopting star connection with neutral point. The rated line voltage is 400V, phase voltage 230V, frequency 50Hz. power factor 0.8(lag). We can provide 60Hz and the other voltage's generator according to the customer's request.
They can be coupled with a prime mover directly or through v-belt making right or reverse continuous rotation at the rated speed. When the rotation speed of prime mover changs 3% or so and load varies in the range of 0~100% cos j 0.8~1.0, the generators offer constant voltage, when sudden change (increase or decrease) of load, the generator will soon return to their normal working state, at the same time, without any starting device the generator can directly start an unloaded squirrel cage induction motor.
Operating Condiyions:
Under the following environment, The generator could be continuous and rated running:
1.Above sea level: Not exceed 1000m
2.Cooling air temperature: 258~313K(-15 oC ~ 40 oC)
3.Relative air damping: not exceed 90%

Technical Date

STC  Series Three Phase A.C. Synchronous Generator / Alternator
Mode;
Output
(kw)
Output
(kva)
Voltage
(v)
Current
(A)
Pole
number
Power
factor
Speed
r.p.m
N.W
(kg)
G.M
(kg)
Packing
size
In a 20'
container
Frequency
(Hz)
STC-3
3
3.8
400
5.4
4
0.8
1500/1800
50
55
51*30*45
425
50/60
STC-5
5
6.3
9
81
95.3
62*35*53
236
STC-7.5/8
7.5/8
9.4
13.5
84
98.5
62*35*53
236
STC-10
10
12.5
18.1
104.6
115
68*42*58
168
STC-12
12
15
21.7
117
125
68*42*58
168
STC-15
15
18.8
27.1
154
160
73*45*64
120
STC-20
20
25
36.1
167
180
73*45*64
120
STC-24
24
30
43.3
187
200
73*45*64
120
STC-30
30
37.5
54.1
245
260
92*55*72
72
STC-40
40
50
72.2
265
280
92*55*72
72
STC-50
50
62.5
90.2
305
320
92*55*72
72













Model
Output
(kW)
Voltage
(V)
Current
(A)
Power
factor
Speed
Pole
number





KVA
kW
(cos)
(r.p.m)





STC-3
3.8
3
400
5.4
0.8
1500
4





STC-5
6.3
5
400
9
0.8
1500
4





STC-7.5
9.4
7.5
400
13.5
0.8
1500
4





STC-8
10
8
400
14.4
0.8
1500
4





STC-10
12.5
10
400
18.1
0.8
1500
4





STC-12
15
12
400
21.7
0.8
1500
4





STC-15
18.8
15
400
27.1
0.8
1500
4





STC-20
25
20
400
36.1
0.8
1500
4





STC-24
30
24
400
43.3
0.8
1500
4





STC-30
37.5
30
400
54.1
0.8
1500
4





STC-40
50
40
400
72.2
0.8
1500
4





STC-50
62.5
50
400
90.2
0.8
1500
4







TOPS STC Alternative Energy Generator

TOPS STC Alternative Energy Generator


Company Profile


longer logo

Fuzhou Landtop Co., Ltd. is specialized in manufacturing and exporting a wide range of electromechanical products , covering Alternators, Generators, Electric Motors, Water Pumps etc.

With years of development, we have developed into a large-scale, modern, comprehensive and international company. Our company is located in Fuzhou, a sea-port city, enjoying convenient transportation network. We also have our own plants in Fu'an City (Mindong Electromechanical City). Our company is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.

We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc. In addition, all our products have passed ISO9001:2008, CE,SGS and CQC certifications.

Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our company is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
